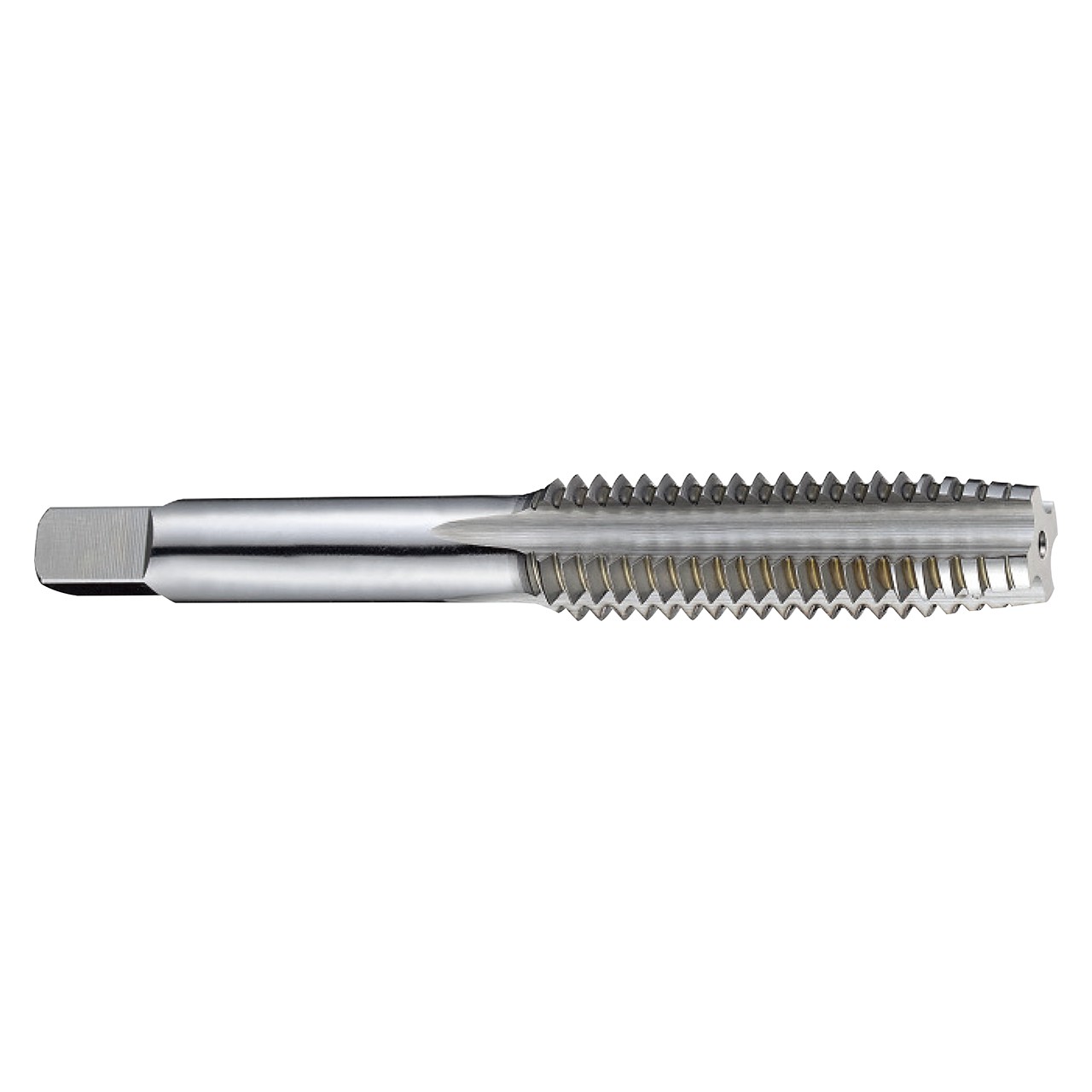

Product Specifications
| Manufacturer Part Number | T7315367 |
| Diameter (Decimal Inch) | 0.3150" |
| Diameter (mm) | 8.00mm |
| OAL (Decimal Inch) | 2.7200" |
| OAL (mm) | 69.09mm |
| Thread Length (Decimal Inch) | 1.1300" |
| Thread Length (mm) | 28.70mm |
| Square Length (Decimal Inch) | 0.3800" |
| Square Length (mm) | 9.65mm |
| Shank Diameter (Decimal Inch) | 0.3180" |
| Shank Diameter (mm) | 8.10mm |
| Square Size (Decimal Inch) | 0.2380" |
| Square Size (mm) | 6.05mm |
| Drill Size (Decimal Inch) | 0.2702" |
| Drill Size (mm) | 6.86mm |
| Useable Length (Decimal Inch) | 1.1300" |
| Useable Length (mm) | 28.70mm |
| Length/Diameter | 2xD |
| Number of Flutes | 4 |
| Thread Diameter (Inch) | M8 |
| Thread Pitch | 1.25 TPI |
| Series | T7315 |
| Thread Series | M |
| Pitch Limit | D5 |
| Chamfer Length | 4P-5P |
| Shank Type | Square |
| Chamfer Type | Plug |
| Helix Angle | 0 Degree |
| Finish | Bright |
| Material | HSS |
| Blank Standard | 302 |
| Tap Type | Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Tap Type:
Hand
Thread Limit:
D5
Number of Flutes:
4
Chamfer:
Plug
Material:
HSS
Finish:
Bright
