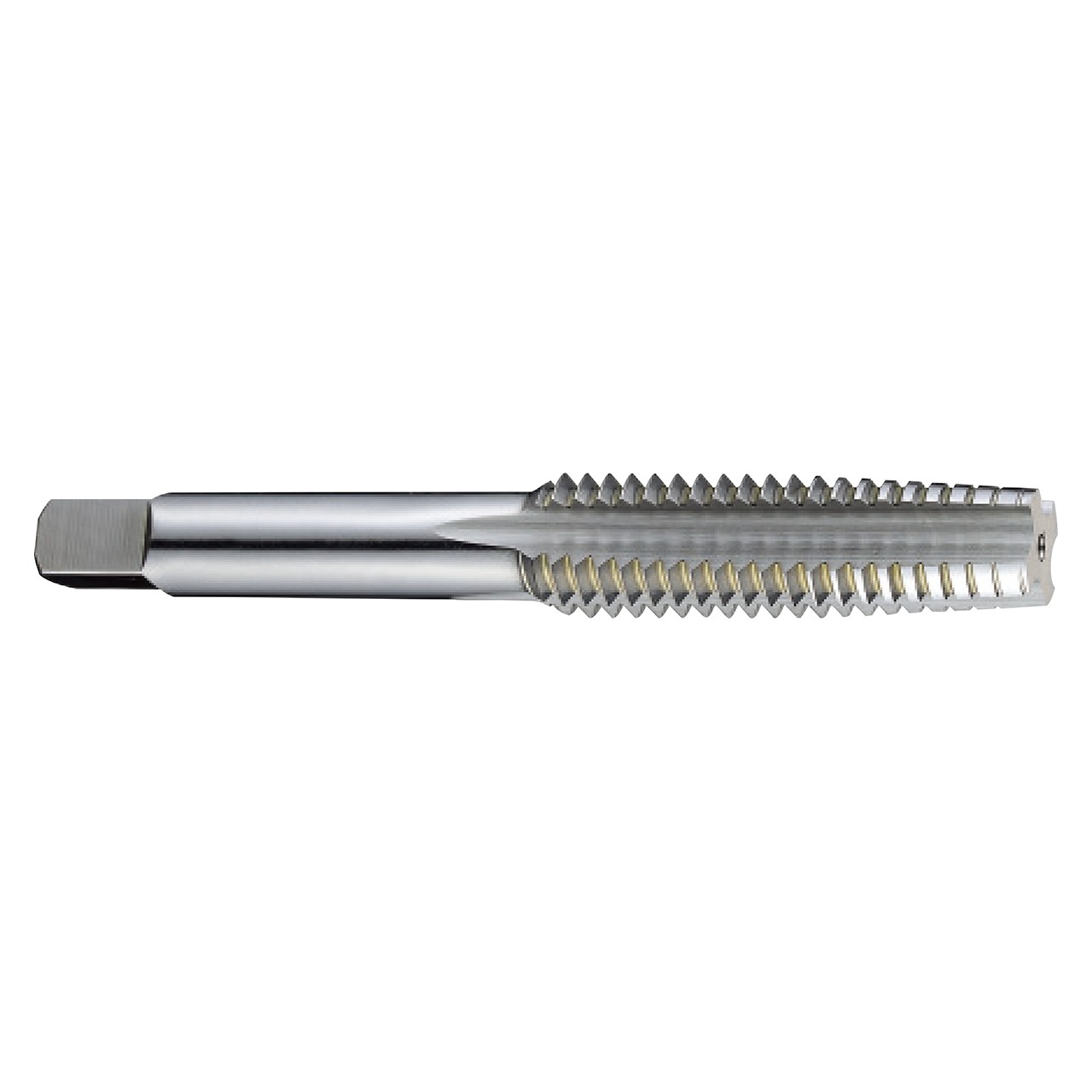

| Manufacturer Part Number | T7316366 |
| Thread Size | #12 |
| Thread Size (Decimal Inch) | 0.216" |
| Thread Size (mm) | 5.49mm |
| Threads per Inch | 24 |
| Thread Series | UNC |
| Pitch Limit | H3 |
| Chamfer Type | Taper |
| Chamfer Length | 7P-9P |
| Blank Standard | 302 |
| Overall Length (Decimal Inch) | 2.380" |
| Overall Length (mm) | 60.45mm |
| Thread Length (Decimal Inch) | 0.940" |
| Thread Length (mm) | 23.88mm |
| Square Length (Decimal Inch) | 0.280" |
| Square Length (mm) | 7.11mm |
| Shank Diameter (Decimal Inch) | 0.220" |
| Shank Diameter (mm) | 5.60mm |
| Square Size (Decimal Inch) | 0.165" |
| Square Size (mm) | 4.19mm |
| Drill Size (Decimal Inch) | 0.178" |
| Drill Size (mm) | 4.52mm |
| Connection Size (Decimal Inch) | 0.220" - 0.165" |
| Connection Size (mm) | 5.60 - 4.19mm |
| Length / Diameter | 2xD |
| Usable Length (Decimal Inch) | 0.940" |
| Usable Length (mm) | 23.88mm |
| Number of Flutes | 4 |
| Coating | Bright |
| Material | HSS |
| Shank Type | Square |
| Application | P,M,K,N |
| Series | T7316 |
| Product Type | Straight Flute Tap |
