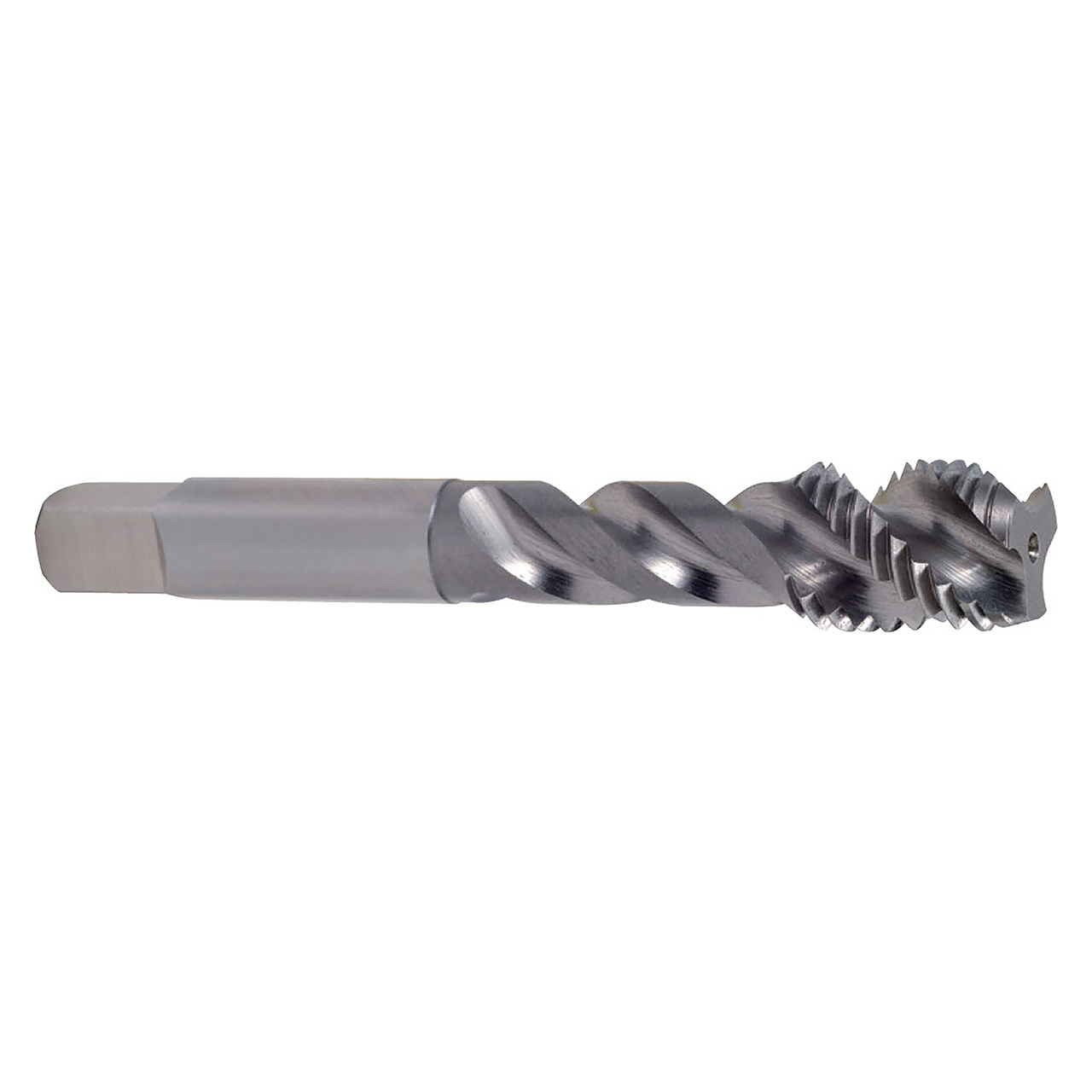

YG1 T7406423 | UNF 1/4" - 24 Size x 0.472" Thread Length x 0.318" Shank x 2.720" OAL x 50 Degree Helix Angle H3 Bottoming Chamfer 3 Flute Bright Coated HSS T7406 Screw Thread Insert

Brand:

YG1

Thread Size (Inch):

1/4"

Thread Size (Decimal Inch):

0.2500"

Thread Size (mm):

6.35mm

Thread Limit:

H3

Number of Flutes:

3

Chamfer:

Bottoming

Finish/Coating:

Bright

Material:

HSS

Overall Length (Decimal Inch):

2.7200"

Overall Length (mm):

69.09mm

Thread Length (Decimal inch):

0.4720"

Thread Length (mm):

11.99mm

Shank Diameter (Decimal inch):

0.3180"

Shank Diameter (mm):

8.08mm

Thread Standard:

322

Helix Angle:

50 Degree

interval quantity:

1

SKU:

15011957

UPC:

Weight:

0.05 LBS

Minimum Purchase:

1 unit

Shipping:

Calculated at Checkout
