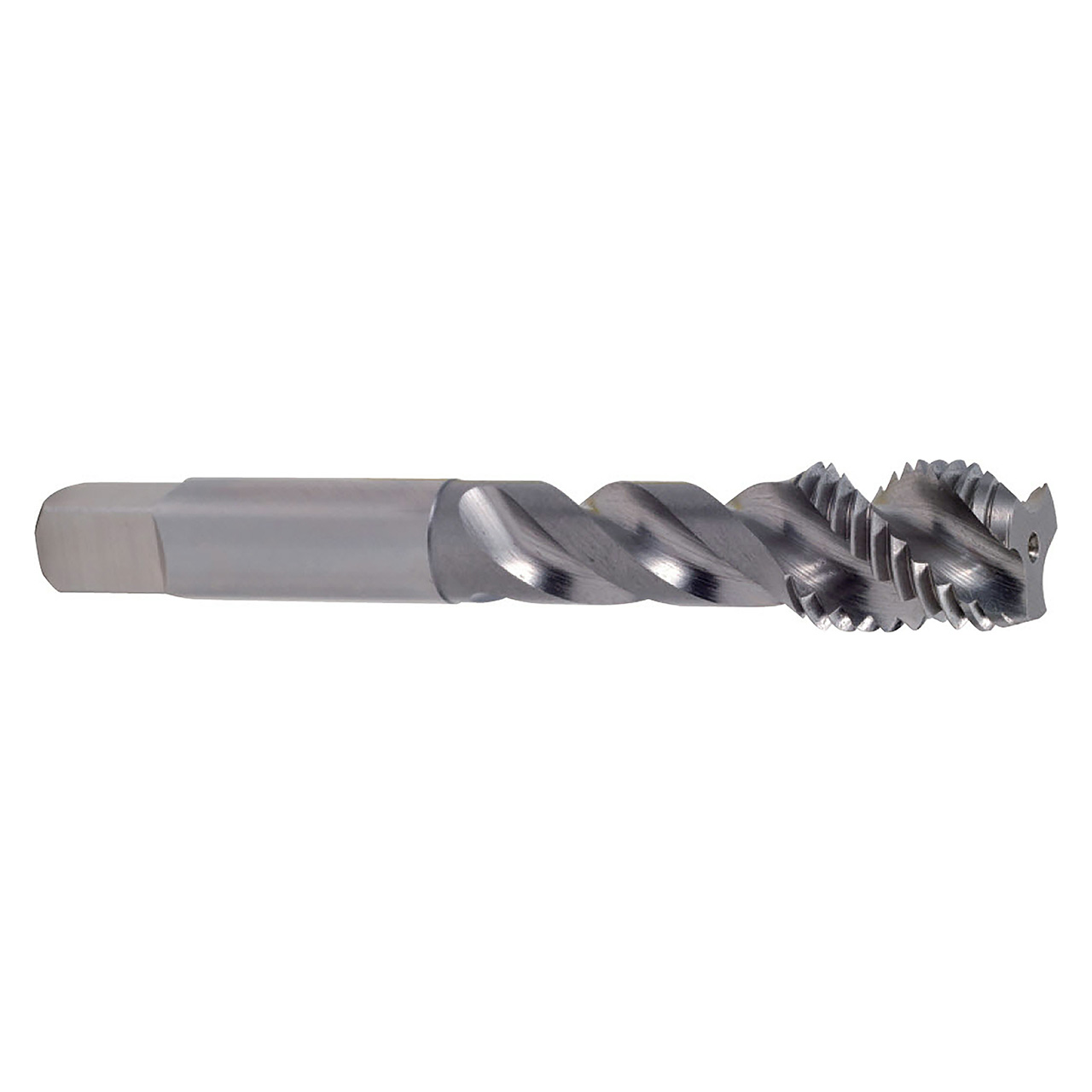

Product Specifications
| Diameter (Decimal Inch) | T7406523 |
| Diameter (Decimal Inch) | 0.5333" |
| Diameter (mm) | 13.55mm |
| Overall Length (Decimal Inch) | 3.5900" |
| Overall Length (mm) | 91.19mm |
| Thread Length (Decimal Inch) | 1.6600" |
| Thread Length (mm) | 42.16" |
| Square Length (Decimal Inch) | 1.6600" |
| Square Length (mm) | 42.16" |
| Shank Diameter (Decimal Inch) | 0.4290" |
| Shank Diameter (mm) | 10.90mm |
| Square Size (Decimal Inch) | 0.3220" |
| Square Size (mm) | 8.18mm |
| Drill Size (Decimal Inch) | 0.4528" |
| Drill Size (mm) | 11.50mm |
| Useable Length (Decimal Inch) | 1.6600" |
| Useable Length (mm) | 42.16mm |
| Length/Diameter | 2.0xD |
| Coolant Through | No |
| Tap Type | SPFL |
| Number Of Flutes | 4 |
| Size | 7/16 |
| Pitch | 14 TPI |
| Thread Series | UNC |
| Pitch Limit | H3 |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Finish | Bright |
| Material | HSS |
| Blank Standard | 322 |
| Product Type | Screw Thread Insert |
