Product Specifications
| Diameter (Decimal Inch) | T7425243 |
| Diameter (Decimal Inch) | 5.0060" |
| Diameter (mm) | 127.15mm |
| Overall Length (Decimal Inch) | 2.3800" |
| Overall Length (mm) | 60.45mm |
| Thread Length (Decimal Inch) | 0.3540" |
| Thread Length (mm) | 8.99" |
| Square Length (Decimal Inch) | 0.3540" |
| Square Length (mm) | 8.99" |
| Shank Diameter (Decimal Inch) | 0.1940" |
| Shank Diameter (mm) | 4.93mm |
| Square Size (Decimal Inch) | 0.1520" |
| Square Size (mm) | 3.86mm |
| Neck Diameter (Decimal Inch) | 0.1310" |
| Neck Diameter (mm) | 3.33mm |
| Drill Size (Decimal Inch) | 0.1654" |
| Drill Size (mm) | 4.20mm |
| Useable Length (Decimal Inch) | 0.8800" |
| Useable Length (mm) | 22.35mm |
| Length/Diameter | 2.5xD |
| Coolant Through | No |
| Tap Type | SPFL |
| Number Of Flutes | 3 |
| Size | M4 |
| Pitch | 0.7 TPI |
| Thread Series | M |
| Pitch Limit | D3 |
| Chamfer Type | Bottoming |
| Chamfer Length | 1.5P-2P |
| Finish | Bright |
| Material | HSS |
| Blank Standard | 322A |
| Helix Angle | 50 Degree |

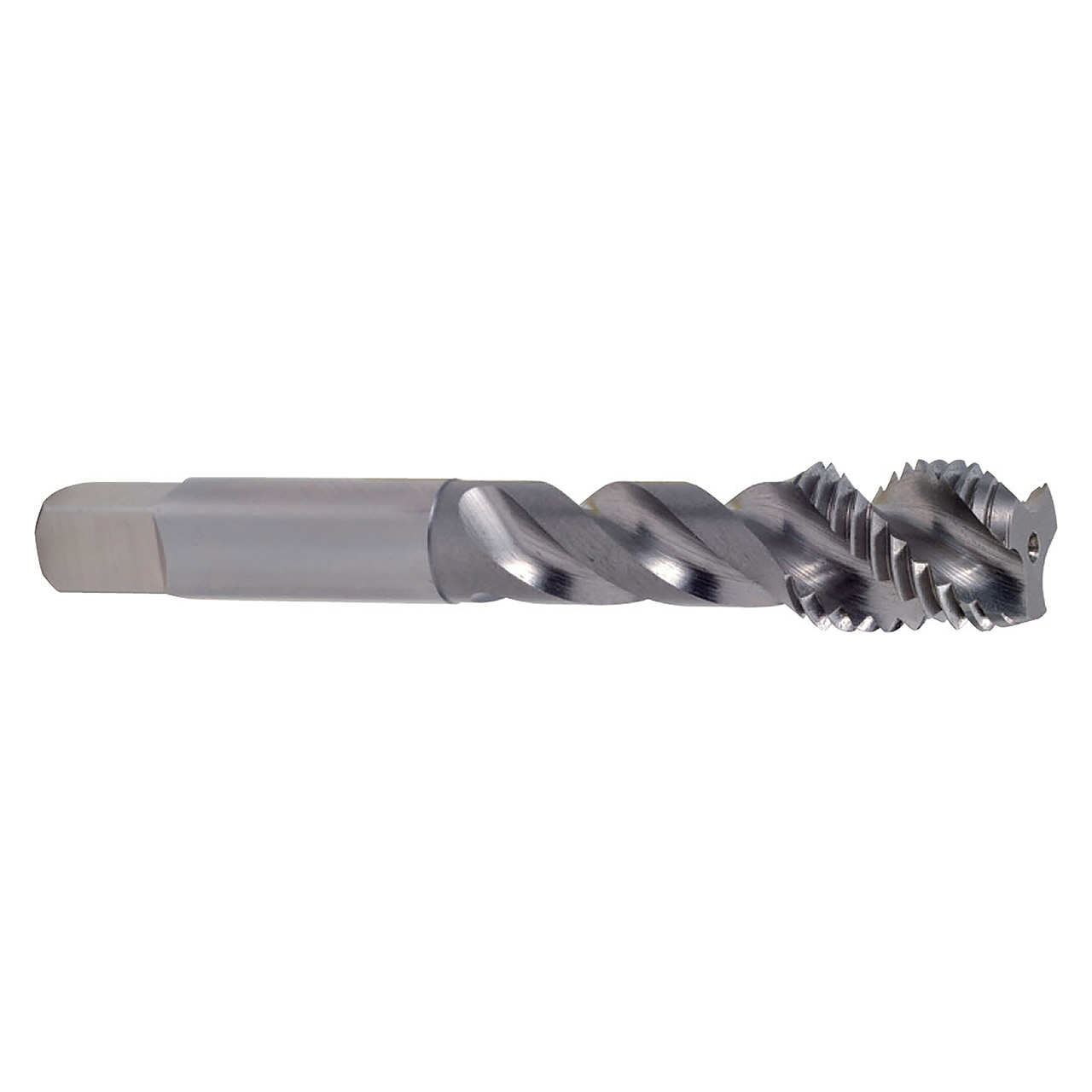

| Product Type | Spiral Flute Tap |
