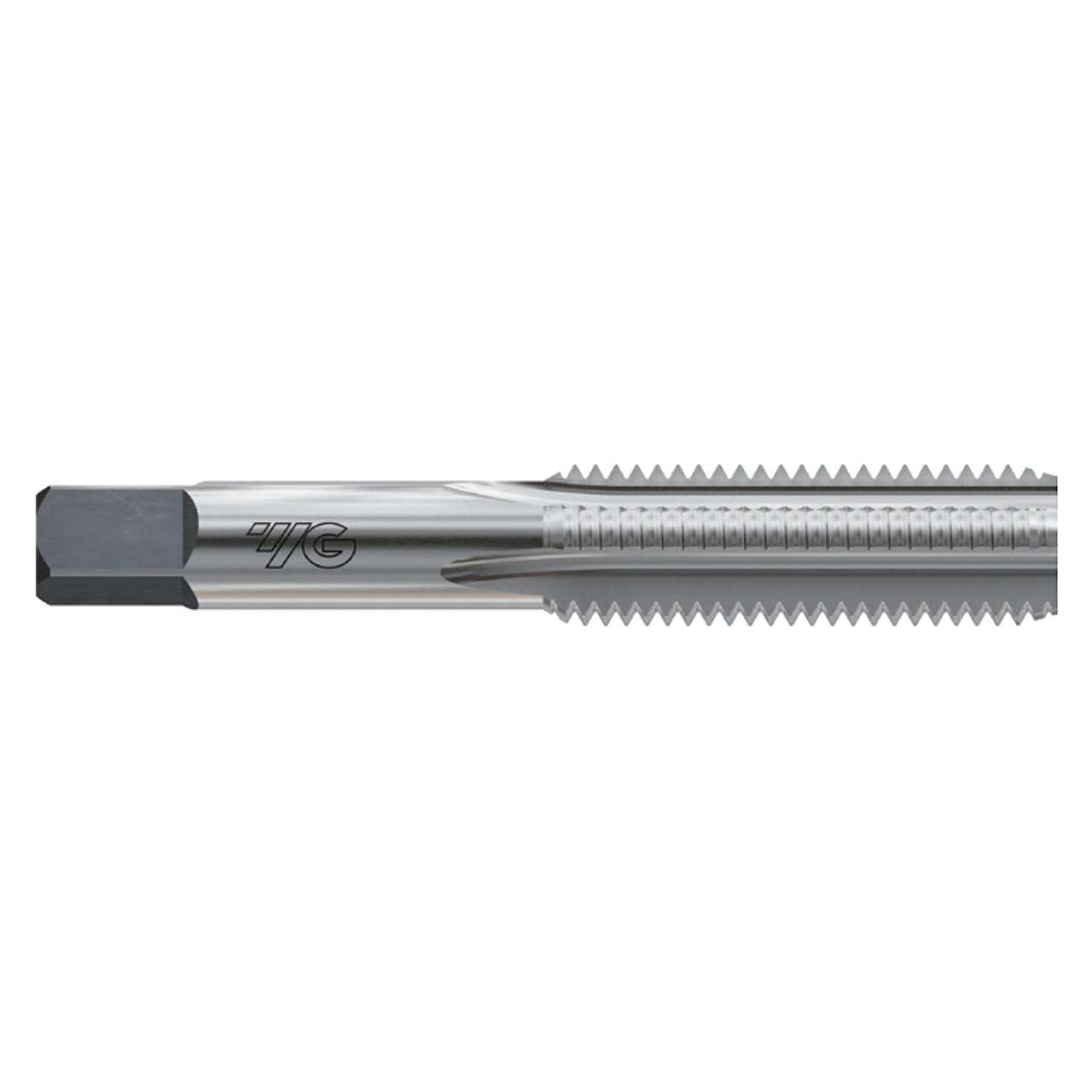

| Manufacturer Part Number | T7436202 |
| Thread Size | #5 |
| Thread Size (Decimal Inch) | 0.125" |
| Thread Size (mm) | 3.18mm |
| Threads per Inch (TPI) | 40 |
| Thread Series | UNC |
| Pitch Limit | H2 |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Overall Length (Decimal Inch) | 2.126" |
| Overall Length (mm) | 54.00mm |
| Thread Length (Decimal Inch) | 0.453" |
| Thread Length (mm) | 11.51mm |
| Square Length (Decimal Inch) | 0.250" |
| Square Length (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.168" |
| Shank Diameter (mm) | 4.27mm |
| Square Size (Decimal Inch) | 0.131" |
| Square Size (mm) | 3.33mm |
| Neck Diameter (Decimal Inch) | 0.120" |
| Neck Diameter (mm) | 3.05mm |
| Drill Size (Decimal Inch) | 0.134" |
| Drill Size (mm) | 3.40mm |
| Connection Size (Decimal Inch) | 0.168" x 0.131" |
| Connection Size (mm) | 4.27 x 3.33mm |
| Usable Length (Decimal Inch) | 0.750" |
| Usable Length (mm) | 19.05mm |
| Length / Diameter | 3.0 x D |
| Number of Flutes | 2 |
| Coating | Bright |
| Material | HSS |
| Blank Standard | 322 |
| Series | T7436 |
| Product Type | Spiral Point STI Tap |
