Product Specifications
| Manufacturer Part Number | T7436283 |
| Thread Size | #8 |
| Thread Size (Decimal Inch) | 0.164" |
| Thread Size (mm) | 4.17mm |
| Threads per Inch (TPI) | 32 |
| Thread Series | UNC |
| Pitch Limit | H3 |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Overall Length (Decimal Inch) | 2.380" |
| Overall Length (mm) | 60.45mm |
| Thread Length (Decimal Inch) | 0.571" |
| Thread Length (mm) | 14.50mm |
| Square Length (Decimal Inch) | 0.280" |
| Square Length (mm) | 7.11mm |
| Shank Diameter (Decimal Inch) | 0.220" |
| Shank Diameter (mm) | 5.59mm |
| Square Size (Decimal Inch) | 0.165" |
| Square Size (mm) | 4.19mm |
| Drill Size (Decimal Inch) | 0.173" |
| Drill Size (mm) | 4.40mm |
| Connection Size (Decimal Inch) | 0.220" x 0.165" |
| Connection Size (mm) | 5.59 x 4.19mm |
| Usable Length (Decimal Inch) | 0.940" |
| Usable Length (mm) | 23.88mm |
| Length / Diameter | 3.0 x D |
| Number of Flutes | 2 |
| Coating | Bright |
| Material | HSS |
| Blank Standard | 322 |
| Series | T7436 |

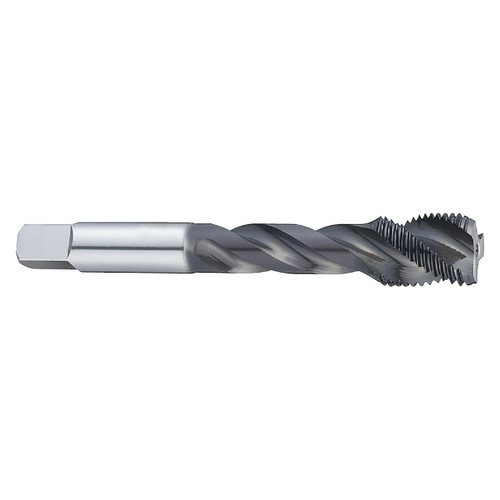

| Product Type | Spiral Point Tap |
