Product Specifications
| Diameter (Decimal Inch) | T7436483 |
| Diameter (Decimal Inch) | 0.4592" |
| Diameter (mm) | 11.66mm |
| Overall Length (Decimal Inch) | 3.3800" |
| Overall Length (mm) | 85.85mm |
| Thread Length (Decimal Inch) | 0.9840" |
| Thread Length (mm) | 24.99" |
| Square Length (Decimal Inch) | 0.9840" |
| Square Length (mm) | 24.99" |
| Shank Diameter (Decimal Inch) | 0.3670" |
| Shank Diameter (mm) | 9.32mm |
| Square Size (Decimal Inch) | 0.2750" |
| Square Size (mm) | 6.99mm |
| Drill Size (Decimal Inch) | 0.3937" |
| Drill Size (mm) | 10.00mm |
| Useable Length (Decimal Inch) | 1.6600" |
| Useable Length (mm) | 42.16mm |
| Length/Diameter | 3.0xD |
| Coolant Through | No |
| Tap Type | SPPT |
| Number Of Flutes | 3 |
| Size | 3/8 |
| Pitch | 16 TPI |
| Thread Series | UNC |
| Pitch Limit | H3 |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Finish | Bright |
| Material | HSS |
| Blank Standard | 322 |

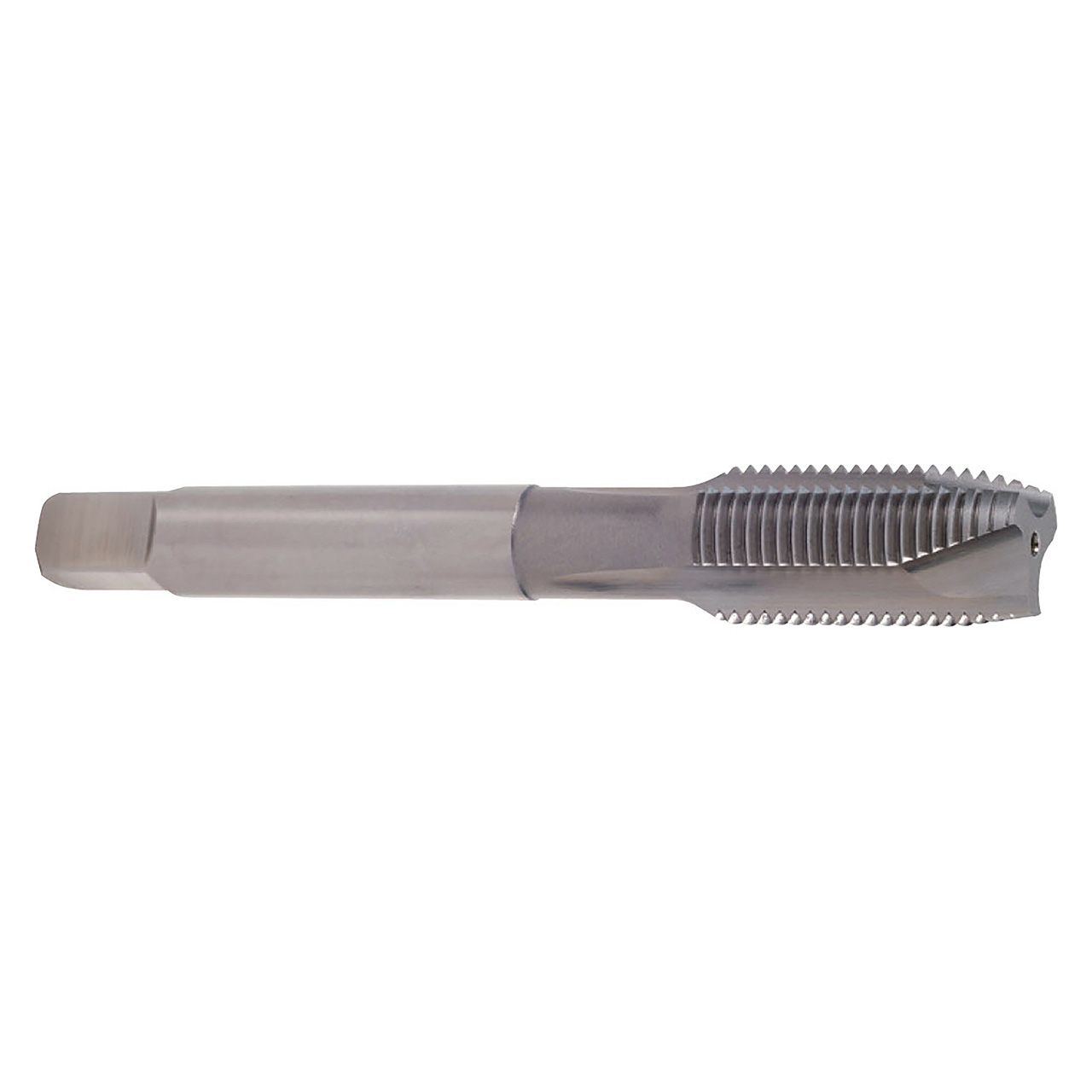

| Product Type | Spiral Point Tap |
