Product Specifications
| Manufacturer Part Number | T7616443 |
| Thread Size (Inch) | 5/16" |
| Thread Size (Decimal Inch) | 0.313" |
| Thread Size (mm) | 7.94mm |
| Threads per Inch | 18 |
| Thread Series | UNC |
| Pitch Limit | H3 |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Blank Standard | 302 |
| Overall Length (Decimal Inch) | 2.720" |
| Overall Length (mm) | 69.09mm |
| Thread Length (Decimal Inch) | 1.130" |
| Thread Length (mm) | 28.70mm |
| Square Length (Decimal Inch) | 0.380" |
| Square Length (mm) | 9.65mm |
| Shank Diameter (Decimal Inch) | 0.318" |
| Shank Diameter (mm) | 8.10mm |
| Square Size (Decimal Inch) | 0.238" |
| Square Size (mm) | 6.05mm |
| Drill Size (Decimal Inch) | 0.262" |
| Drill Size (mm) | 6.65mm |
| Connection Size (Decimal Inch) | 0.318" - 0.238" |
| Connection Size (mm) | 8.10 - 6.05mm |
| Length / Diameter | 2xD |
| Usable Length (Decimal Inch) | 1.130" |
| Usable Length (mm) | 28.70mm |
| Number of Flutes | 4 |
| Coating | Bright |
| Material | HSS |
| Shank Type | Square |
| Application | P,M,K,N |
| Series | T7616 |

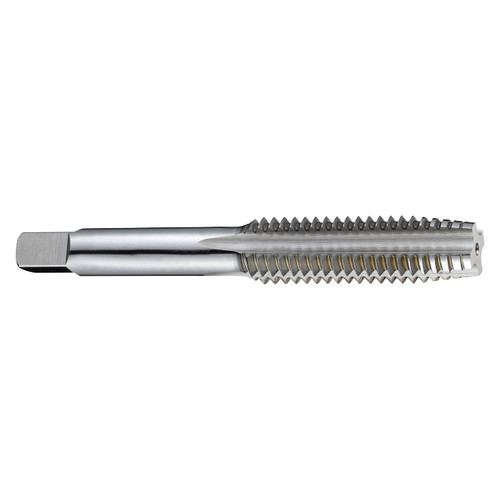

| Product Type | Straight Flute Tap |
