| Manufacturer Part Number | T7A15708 |
| Thread Size | M20 |
| Thread Size (Decimal Inch) | 0.787" |
| Thread Size (mm) | 20.00mm |
| Pitch | 2.50 |
| Thread Series | M |
| Pitch Limit | D7 |
| Chamfer Type | Bottoming |
| Chamfer Length | 1.5P-2P |
| Blank Standard | 302 |
| Overall Length (Decimal Inch) | 4.470" |
| Overall Length (mm) | 113.54mm |
| Thread Length (Decimal Inch) | 2.000" |
| Thread Length (mm) | 50.80mm |
| Square Length (Decimal Inch) | 0.690" |
| Square Length (mm) | 17.53mm |
| Shank Diameter (Decimal Inch) | 0.652" |
| Shank Diameter (mm) | 16.56mm |
| Square Size (Decimal Inch) | 0.489" |
| Square Size (mm) | 12.42mm |
| Drill Size (Decimal Inch) | 0.698" |
| Drill Size (mm) | 17.73mm |
| Connection Size (Decimal Inch) | 0.652" - 0.489" |
| Connection Size (mm) | 16.56 - 12.42mm |
| Length / Diameter | 2xD |
| Usable Length (Decimal Inch) | 2.000" |
| Usable Length (mm) | 50.80mm |
| Number of Flutes | 4 |
| Coating | Bright |
| Material | HSS |
| Shank Type | Square |
| Application | P,M,K,N |
| Series | T7A15 |

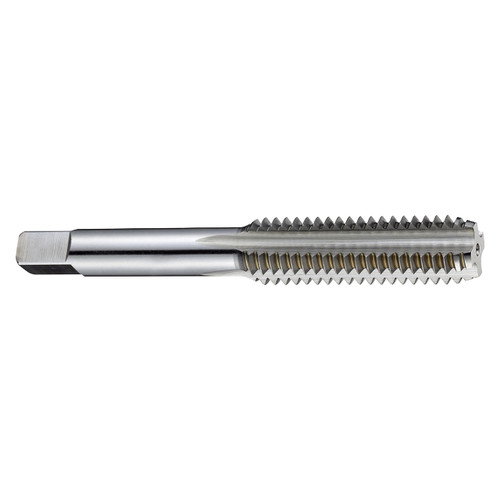

| Product Type | Straight Flute Tap |
