| Manufacturer Part Number | T7B16287H7 |
| Thread Size | #8 |
| Thread Size (Decimal Inch) | 0.164" |
| Thread Size (mm) | 4.17mm |
| Threads per Inch | 32 |
| Thread Series | UNC |
| Pitch Limit | H7 |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Blank Standard | 302 |
| Overall Length (Decimal Inch) | 2.130" |
| Overall Length (mm) | 54.10mm |
| Thread Length (Decimal Inch) | 0.750" |
| Thread Length (mm) | 19.05mm |
| Square Length (Decimal Inch) | 0.250" |
| Square Length (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.168" |
| Shank Diameter (mm) | 4.30mm |
| Square Size (Decimal Inch) | 0.131" |
| Square Size (mm) | 3.33mm |
| Drill Size (Decimal Inch) | 0.136" |
| Drill Size (mm) | 3.44mm |
| Connection Size (Decimal Inch) | 0.168" - 0.131" |
| Connection Size (mm) | 4.30 - 3.33mm |
| Length / Diameter | 2xD |
| Usable Length (Decimal Inch) | 0.750" |
| Usable Length (mm) | 19.05mm |
| Number of Flutes | 3 |
| Coating | Bright |
| Material | HSS |
| Shank Type | Square |
| Application | P,M,K,N |
| Series | T7B16 |

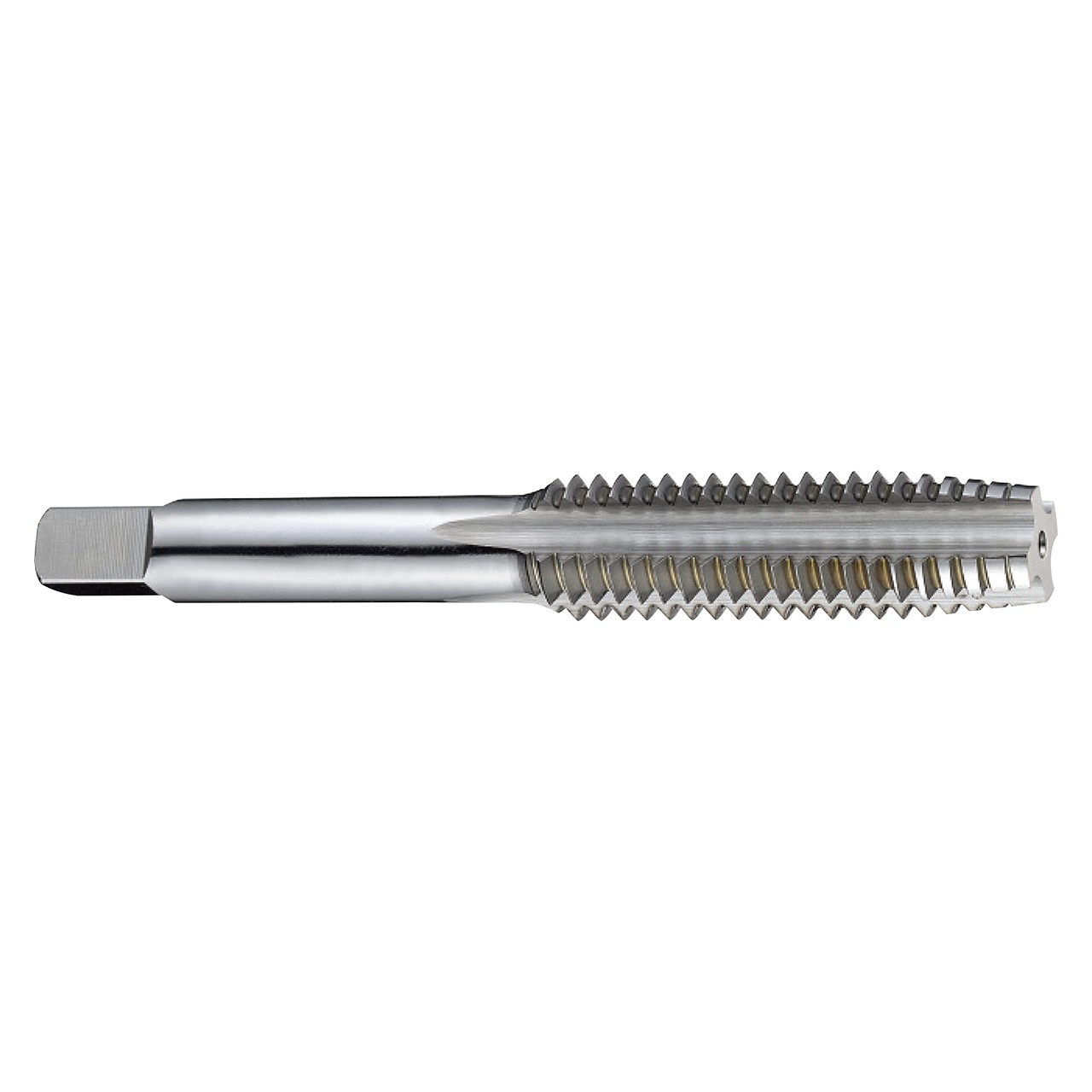

| Product Type | Straight Flute Tap |
