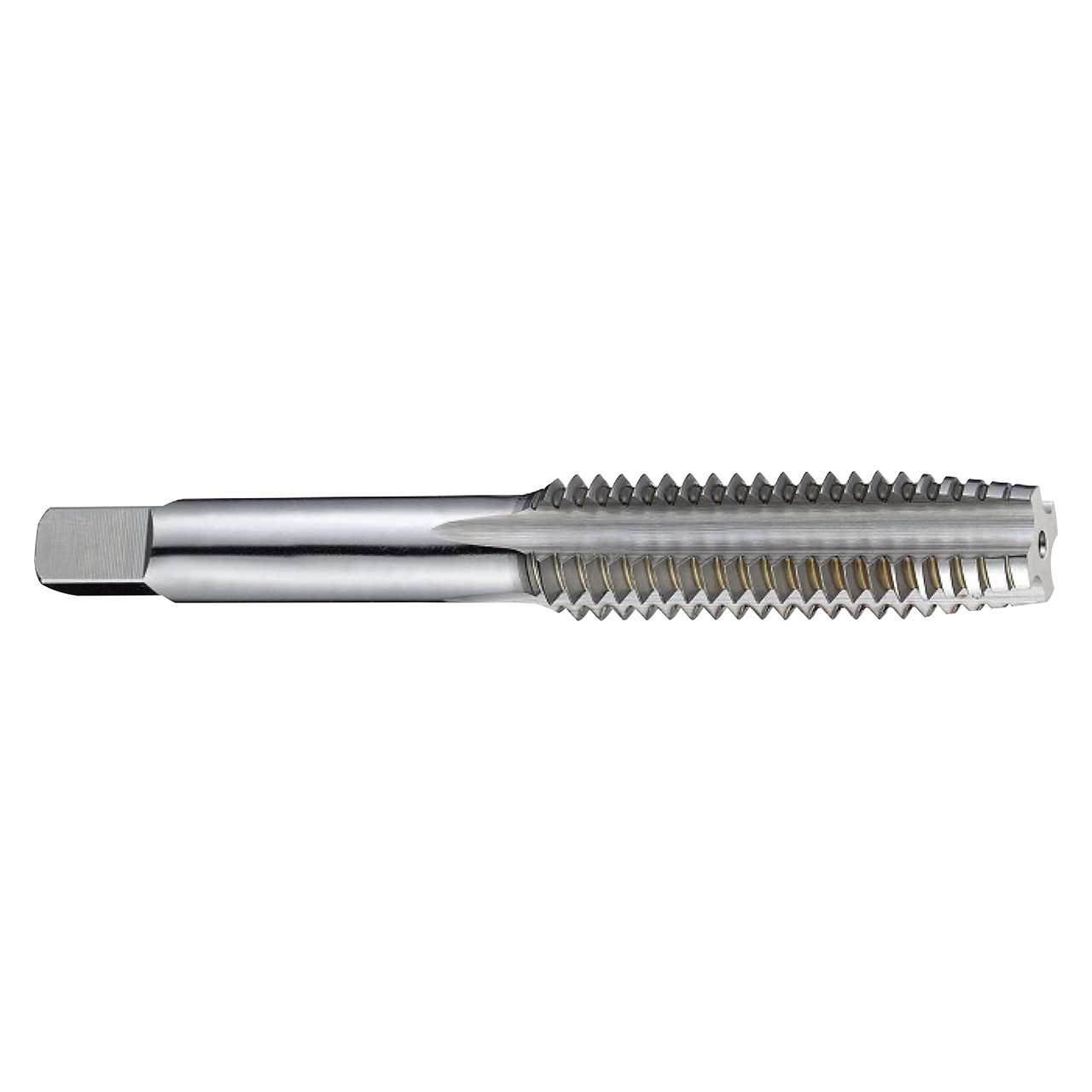

| Manufacturer Part Number | T7B16547 |
| Thread Size (Inch) | 7/16" |
| Thread Size (Decimal Inch) | 0.438" |
| Thread Size (mm) | 11.11mm |
| Threads per Inch | 20 |
| Thread Series | UNF |
| Pitch Limit | H3 |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Blank Standard | 302 |
| Overall Length (Decimal Inch) | 3.160" |
| Overall Length (mm) | 80.26mm |
| Thread Length (Decimal Inch) | 1.440" |
| Thread Length (mm) | 36.58mm |
| Square Length (Decimal Inch) | 0.410" |
| Square Length (mm) | 10.41mm |
| Shank Diameter (Decimal Inch) | 0.323" |
| Shank Diameter (mm) | 8.20mm |
| Square Size (Decimal Inch) | 0.242" |
| Square Size (mm) | 6.15mm |
| Drill Size (Decimal Inch) | 0.392" |
| Drill Size (mm) | 9.96mm |
| Connection Size (Decimal Inch) | 0.323" - 0.242" |
| Connection Size (mm) | 8.20 - 6.15mm |
| Length / Diameter | 2xD |
| Usable Length (Decimal Inch) | 1.440" |
| Usable Length (mm) | 36.58mm |
| Number of Flutes | 3 |
| Coating | Bright |
| Material | HSS |
| Shank Type | Square |
| Application | P,M,K,N |
| Series | T7B16 |

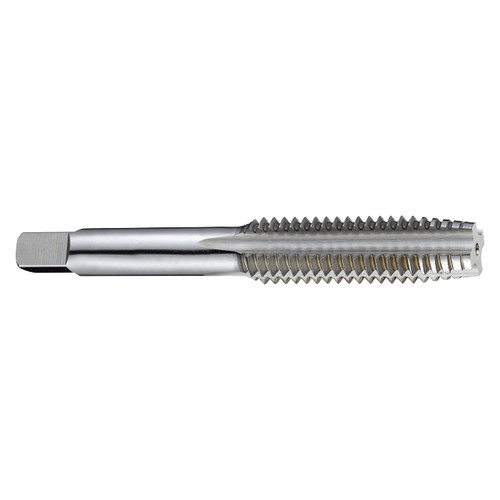

| Product Type | Straight Flute Tap |
