| Manufacturer Part Number | T7R01163 |
| Diameter (Decimal Inch) | 0.1120" |
| Diameter (mm) | 2.84mm |
| Pitch | 40 TPI |
| Size | #4 |
| Shank Diameter (Decimal Inch) | 0.1410" |
| Shank Diameter (mm) | 3.58mm |
| Overall Length (Decimal Inch) | 1.8800" |
| Overall Length (mm) | 47.80mm |
| Thread Length (Decimal Inch) | 0.5600" |
| Thread Length (mm) | 14.22mm |
| Square Length (Decimal Inch) | 0.1900" |
| Square Length (mm) | 4.83mm |
| Square Size (Decimal Inch) | 0.1100" |
| Square Size (mm) | 2.79mm |
| Drill Size (Decimal Inch) | 0.1010" |
| Drill Size (mm) | 2.56mm |
| Number of Lobes | 4 |
| Number of Grooves | 1 |
| Length Diameter | 3.0 x D |
| Shank Type | Square |
| Coating | TICN |
| Material | HSSE-V3 |
| Thread Series | UNC |
| Series | T7R01 |

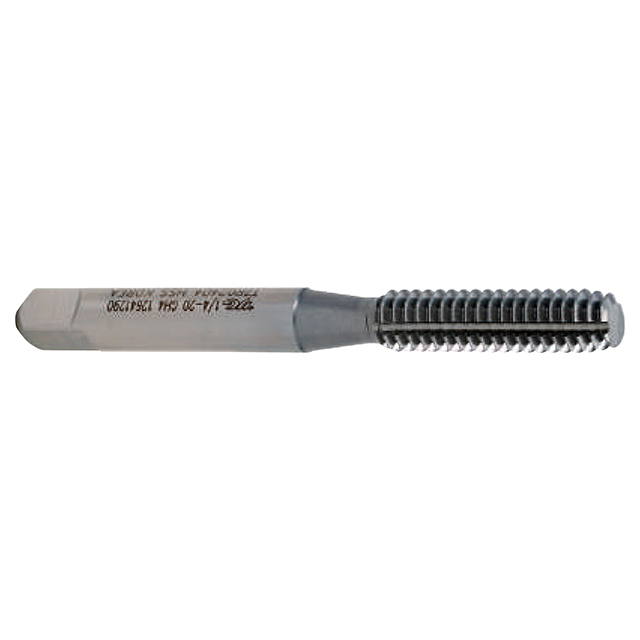

| Product Type | Thread Forming Tap |
