| Manufacturer Part Number | T7R01344 |
| Diameter (Decimal Inch) | 0.1900" |
| Diameter (mm) | 4.83mm |
| Pitch | 32 TPI |
| Size | #10 |
| Shank Diameter (Decimal Inch) | 0.1940" |
| Shank Diameter (mm) | 4.93mm |
| Overall Length (Decimal Inch) | 2.3800" |
| Overall Length (mm) | 60.50mm |
| Thread Length (Decimal Inch) | 0.6300" |
| Thread Length (mm) | 16.00mm |
| Square Length (Decimal Inch) | 0.2500" |
| Square Length (mm) | 6.35mm |
| Square Size (Decimal Inch) | 0.1520" |
| Square Size (mm) | 3.86mm |
| Drill Size (Decimal Inch) | 0.1762" |
| Drill Size (mm) | 4.48mm |
| Number of Lobes | 4 |
| Number of Grooves | 1 |
| Length Diameter | 3.0 x D |
| Shank Type | Square |
| Coating | TICN |
| Material | HSSE-V3 |
| Thread Series | UNF |
| Series | T7R01 |

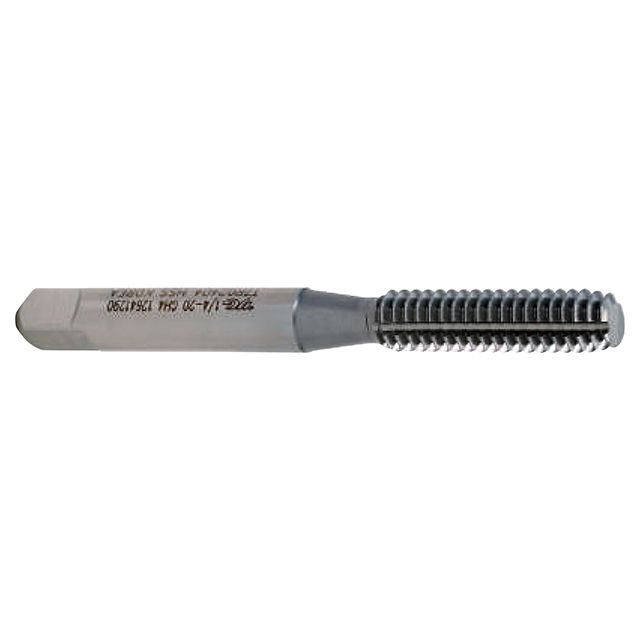

| Product Type | Thread Forming Tap |
