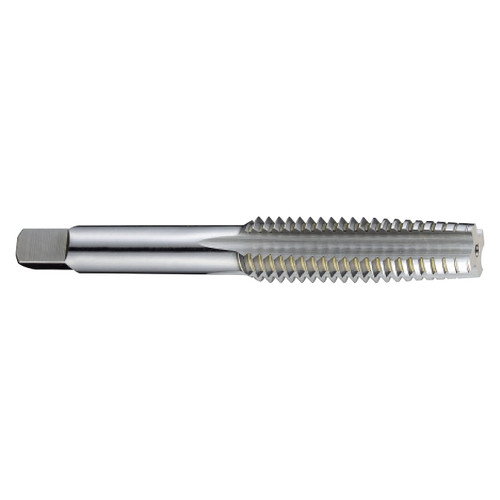

Product Specifications
| Manufacturer Part Number | T8616403 |
| Diameter (Decimal Inch) | 0.2500" |
| Diameter (mm) | 6.35mm |
| OAL (Decimal Inch) | 2.5000" |
| OAL (mm) | 63.50mm |
| Thread Length (Decimal Inch) | 1.0000" |
| Thread Length (mm) | 25.40mm |
| Square Length (Decimal Inch) | 0.3100" |
| Square Length (mm) | 7.87mm |
| Shank Diameter (Decimal Inch) | 0.2550" |
| Shank Diameter (mm) | 6.50mm |
| Square Size (Decimal Inch) | 0.1910" |
| Square Size (mm) | 4.85mm |
| Drill Size (Decimal Inch) | 0.2045" |
| Drill Size (mm) | 5.20mm |
| Useable Length (Decimal Inch) | 1.0000" |
| Useable Length (mm) | 25.40mm |
| Length/Diameter | 2xD |
| Number of Flutes | 4 |
| Thread Diameter (Inch) | 1/4" |
| Thread Pitch | 20 TPI |
| Series | T8616 |
| Thread Series | UNC |
| Pitch Limit | H3 |
| Chamfer Length | 4P-5P |
| Shank Type | Square |
| Chamfer Type | Plug |
| Helix Angle | 0 Degree |
| Finish | TiN |
| Material | HSS |
| Blank Standard | 302 |
| Tap Type | Hand |
