Product Specifications
| Manufacturer Part Number | T8D01343 |
| Size | #10 x 32 UNF H3 |
| Tap Type | SPFL |
| Diameter (Decimal Inch) | 0.190" |
| Diameter (mm) | 4.82mm |
| Thread Series | UNC |
| Number of Flute | 3 |
| Coating | TiN |
| Pitch Limit | H3 |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Pitch | 32 |
| Material | HSS |
| Helix Angle | 50 Degree |
| Overall Length (Decimal Inch) | 6.000" |
| Overall Length (mm) | 152.40mm |
| Thread Length (Decimal Inch) | 0.880" |
| Thread Length (mm) | 22.35mm |
| Square Length (Decimal Inch) | 0.250" |
| Square Length (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.194" |
| Shank Diameter (mm) | 4.93mm |
| Useable Length (Decimal Inch) | 0.880" |
| Useable Length (mm) | 22.35mm |

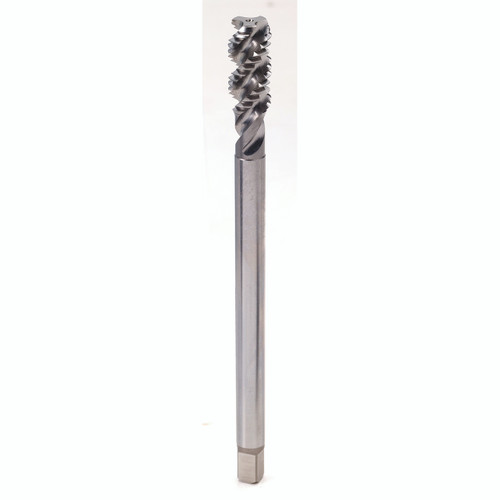

| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Size:
#10
Number of Flute:
3
Diameter (Inch):
15/79"
Diameter (Decimal Inch):
0.1900"
Diameter (mm):
4.82mm
Chamfer Length:
4P-5P
Finish/Coating:
TiN
Material:
HSS
Helix Angle:
50 Degree
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.000"
Overall Length (mm):
152.40mm
Thread Length (Inch):
22/25"
Thread Length (Decimal Inch):
0.8800"
Thread Length (Decimal Inch):
22.35mm
Shank Diameter (Inch):
13/67"
Shank Diameter (Decimal Inch):
0.1940"
Shank Diameter (mm):
4.93mm
Shank Type:
Square
interval quantity:
1
