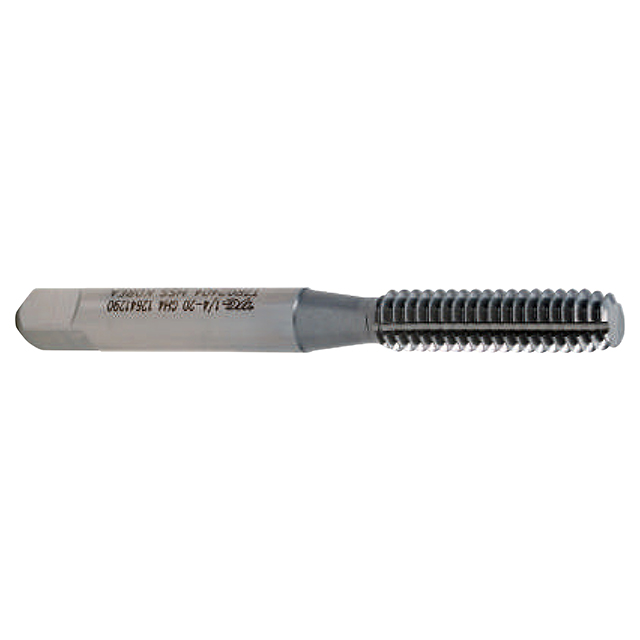

| Manufacturer Part Number | T8R01404 |
| Diameter (Decimal Inch) | 0.2500" |
| Diameter (mm) | 6.35mm |
| Pitch | 20 TPI |
| Size | 1/4" |
| Shank Diameter (Decimal Inch) | 0.2550" |
| Shank Diameter (mm) | 6.48mm |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (mm) | 63.50mm |
| Thread Length (Decimal Inch) | 0.8600" |
| Thread Length (mm) | 21.84mm |
| Square Length (Decimal Inch) | 0.3100" |
| Square Length (mm) | 7.87mm |
| Square Size (Decimal Inch) | 0.1910" |
| Square Size (mm) | 4.85mm |
| Drill Size (Decimal Inch) | 0.2279" |
| Drill Size (mm) | 5.79mm |
| Number of Lobes | 4 |
| Number of Grooves | 1 |
| Length Diameter | 3.0 x D |
| Shank Type | Square |
| Coating | Bright |
| Material | HSS |
| Thread Series | UNC |
| Series | T8R01 |
| Product Type | Thread Forming Tap |
