Product Specifications

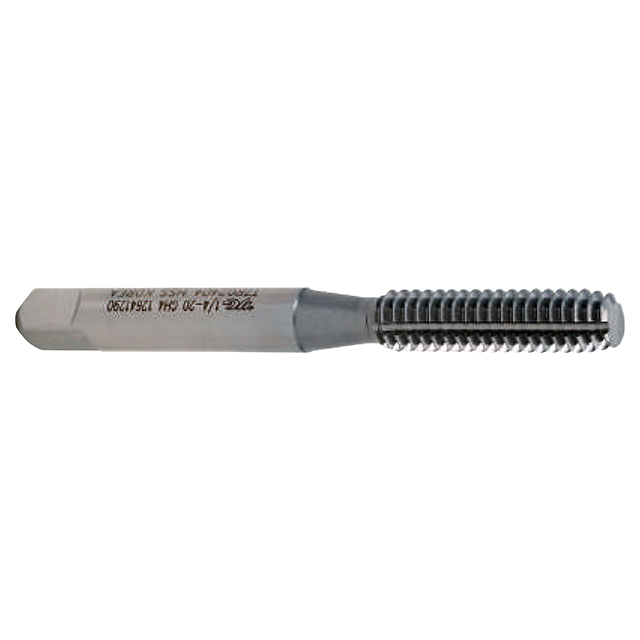

| # Manufacturer Number | T8R02082 |
| Diameter (Decimal Inch) | 0.0860" |
| Diameter (mm) | 2.18mm |
| Pitch | 56 TPI |
| Size | #2 |
| Shank Diameter (Decimal Inch) | 0.1410" |
| Shank Diameter (mm) | 3.58mm |
| Overall Length (Decimal Inch) | 1.7500" |
| Overall Length (mm) | 44.50mm |
| Thread Length (Decimal Inch) | 0.4400" |
| Thread Length (mm) | 11.18mm |
| Square Length (Decimal Inch) | 0.1900" |
| Square Length (mm) | 4.83mm |
| Square Size (Decimal Inch) | 0.1100" |
| Square Size (mm) | 2.79mm |
| Drill Size (Decimal Inch) | 0.0781" |
| Drill Size (mm) | 1.98mm |
| Number of Lobes | 4 |
| Number of Grooves | 1 |
| Length Diameter | 3.0 x D |
| Shank Type | Square |
| Coating | Bright |
| Material | HSS |
| Thread Series | UNC |
| Series | T8R02 |
| Product Type | Thread Forming Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Finish/Coating:
Bright
Material:
HSS
interval quantity:
1
