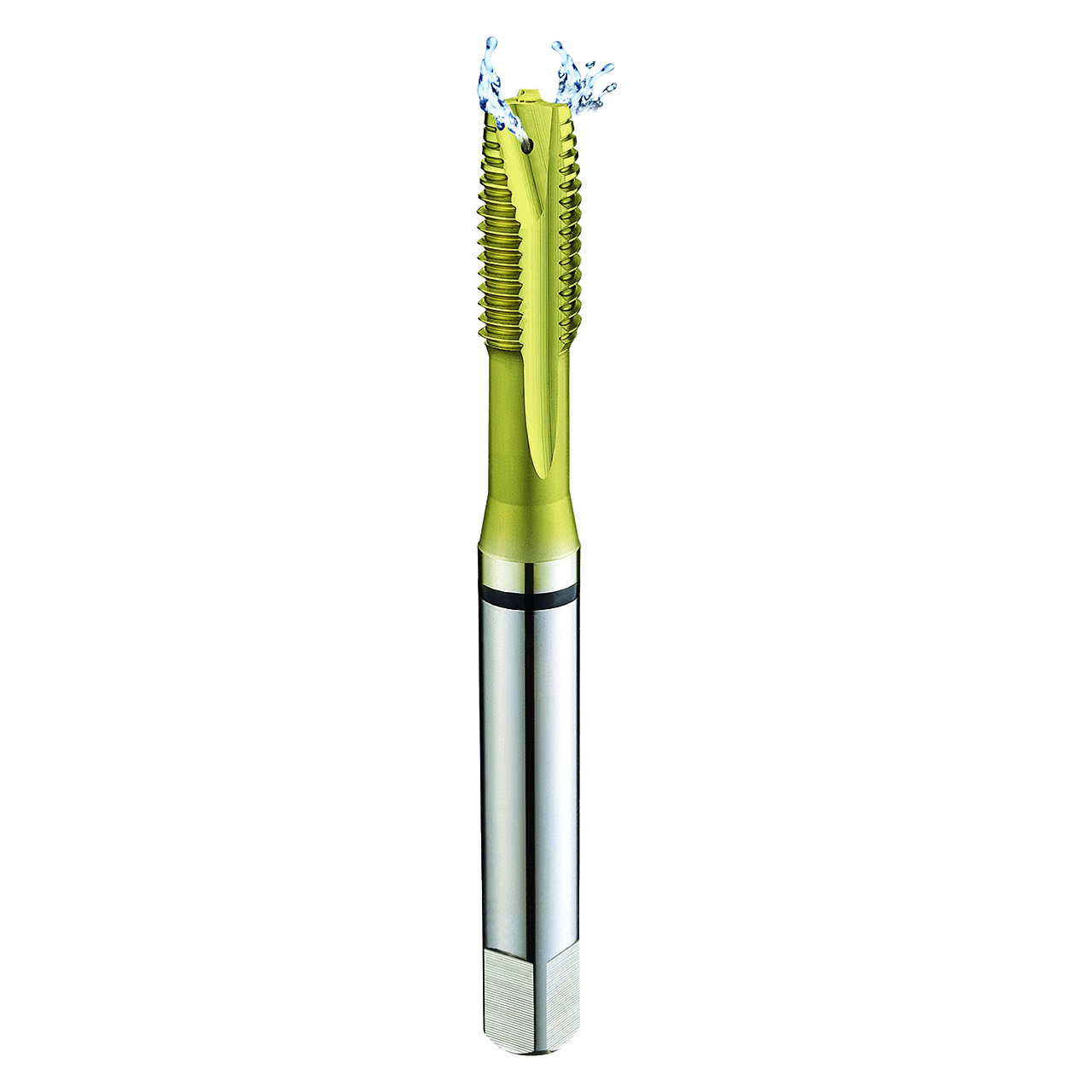

Product Specifications
| EDP Number | TB464N |
| Size & Pitch | 5/16-24 |
| Diameter (Decimal Inch) | 0.3125" |
| Diameter (mm) | 7.94mm |
| Overall Length (Decimal Inch) | 2.7200" |
| Length/Diameter | 3.0xD |
| Chamfer Type | Plug |
| Overall Length (mm) | 69.09mm |
| Thread Length (Decimal Inch) | 0.6690" |
| Thread Length (mm) | 16.99mm |
| Square Length (Decimal Inch) | 0.3800" |
| Square Length (mm) | 9.65mm |
| Shank Diameter (Decimal Inch) | 0.3180" |
| Shank Diameter (mm) | 8.08mm |
| Square Size (Decimal Inch) | 0.2380" |
| Square Size (mm) | 6.05mm |
| Neck Diameter (Decimal Inch) | 0.2540" |
| Connection (mm) | 8.08 x 6.05mm |
| Connection (Decimal Inch) | 0.318 x 0.238" |
| Useable Length (Decimal Inch) | 1.1260" |
| Neck Diameter (mm) | 6.45mm |
| Drill Size (Decimal Inch) | 0.2746" |
| Drill Size (mm) | 6.98mm |
| Useable Length (mm) | 28.60mm |
| Thread Series | UNF |
| Pitch Limit | H4 |
| Chamfer Length | 4P-5P |
| Finish | TIN |
| Blank Standard | 302A |
| Helix Angle (Degree) | 0 Degree |
| Number of Flutes | 3 |
| Tap Type | SPPT |
| Shank Type | Square |
| Coolant Through | Yes |
| Ring Color | Black |
| Trade Name | Combo Tap |
| Series | TB-N |
| Material | HSS-EX |
| Product Type | Spiral Point Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Number of Flutes:
3
Chamfer:
4P - 5P
Finish/Coating:
TIN
Material:
HSS-EX
Through Coolant:
Yes
interval quantity:
1
