| Manufacturer Part Number | TC605C |
| Size & Pitch | 9/16-12 |
| Diameter (Decimal Inch) | 0.5625" |
| Diameter (mm) | 14.29mm |
| Overall Length (Decimal Inch) | 4.3310" |
| Length/Diameter | 3.0xD |
| Chamfer Type | Plug |
| Overall Length (mm) | 110.01mm |
| Thread Length (Decimal Inch) | 0.9840" |
| Thread Length (mm) | 24.99mm |
| Square Length (Decimal Inch) | 0.5000" |
| Square Length (mm) | 12.70mm |
| Shank Diameter (Decimal Inch) | 0.4290" |
| Shank Diameter (mm) | 10.90mm |
| Square Size (Decimal Inch) | 0.3220" |
| Square Size (mm) | 8.18mm |
| Neck Diameter (Decimal Inch) | 0.4170" |
| Connection (mm) | 10.9 x 8.18mm |
| Connection (Decimal Inch) | 0.429 x 0.322" |
| Useable Length (Decimal Inch) | 1.6570" |
| Neck Diameter (mm) | 10.59mm |
| Drill Size (Decimal Inch) | 0.4867" |
| Drill Size (mm) | 12.36mm |
| Useable Length (mm) | 42.09mm |
| Thread Series | UNC |
| Pitch Limit | H5 |
| Chamfer Length | 4P-5P |
| Finish | TICN |
| Blank Standard | DIN/ANSI |
| Helix Angle (Degree) | 0 Degree |
| Number of Flutes | 3 |
| Tap Type | SPPT |
| Shank Type | Square |
| Coolant Through | No |
| Ring Color | Black |
| Trade Name | Combo Tap |
| Series | TC-C |
| Material | HSS-EX |

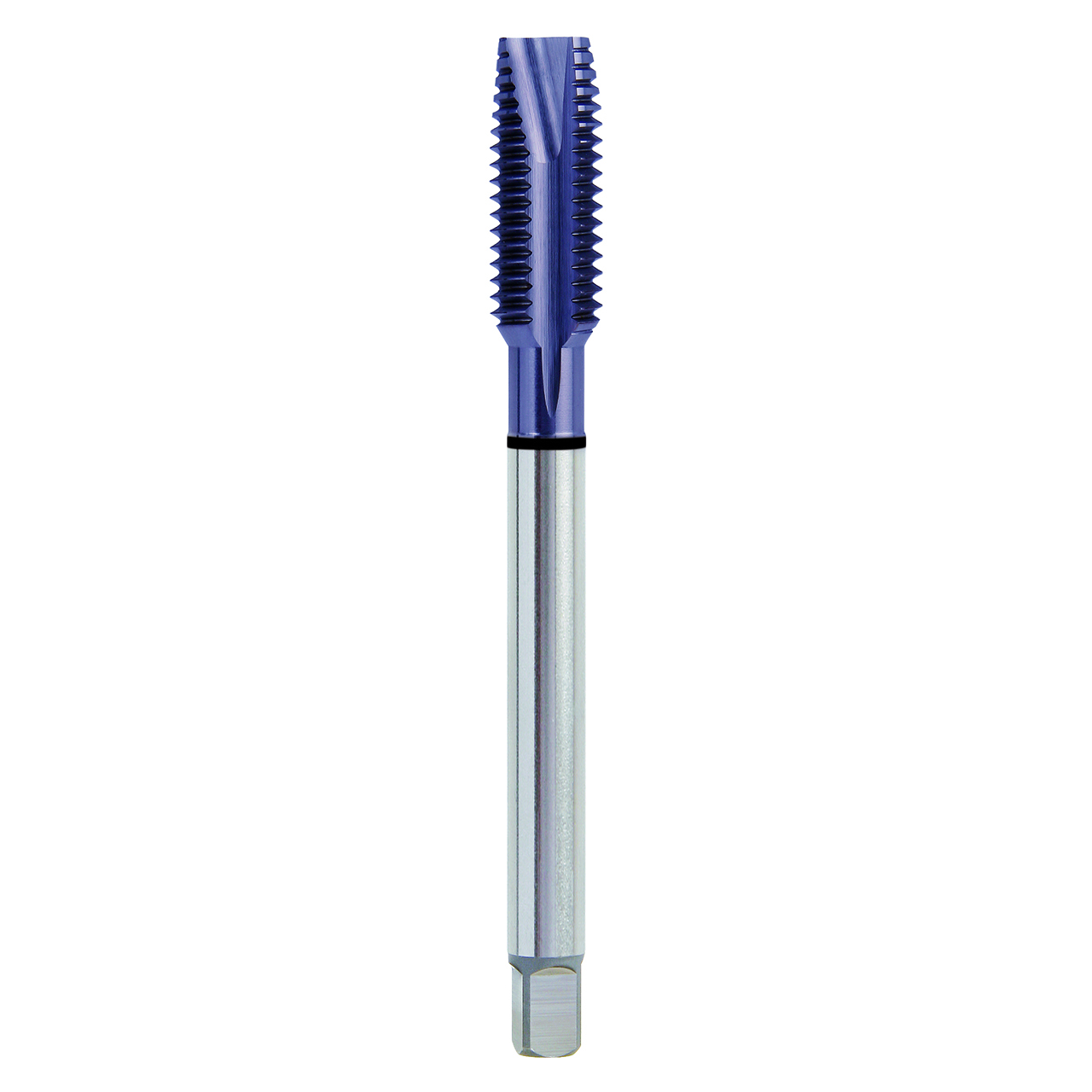

| Product Type | Spiral Point Tap |
