Product Specifications
| EDP Number | TCB804C |
| Size & Pitch | 1-12 |
| Diameter (Decimal Inch) | 1.0000" |
| Diameter (mm) | 25.40mm |
| Overall Length (Decimal Inch) | 5.1300" |
| Length/Diameter | 2.5xD |
| Chamfer Type | Modified Bottoming |
| Overall Length (mm) | 130.30mm |
| Thread Length (Decimal Inch) | 0.7090" |
| Thread Length (mm) | 18.01mm |
| Square Length (Decimal Inch) | 0.8100" |
| Square Length (mm) | 20.57mm |
| Shank Diameter (Decimal Inch) | 0.8000" |
| Shank Diameter (mm) | 20.32mm |
| Square Size (Decimal Inch) | 0.6000" |
| Square Size (mm) | 15.24mm |
| Neck Diameter (Decimal Inch) | 0.7870" |
| Connection (mm) | 20.32 x 15.24mm |
| Connection (Decimal Inch) | 0.8 x 0.6" |
| Useable Length (Decimal Inch) | 3.0910" |
| Neck Diameter (mm) | 19.99mm |
| Drill Size (Decimal Inch) | 0.9242" |
| Drill Size (mm) | 23.48mm |
| Useable Length (mm) | 78.51mm |
| Thread Series | UNF |
| Pitch Limit | H4 |
| Chamfer Length | 2P-3P |
| Finish | TICN |
| Blank Standard | 302A |
| Helix Angle (Degree) | 45 Degree |
| Number of Flutes | 4 |
| Tap Type | SPFL |
| Shank Type | Square |
| Coolant Through | No |
| Ring Color | Green |
| Trade Name | Combo Tap INOX |
| Series | TCB-C |
| Material | HSS-EX |

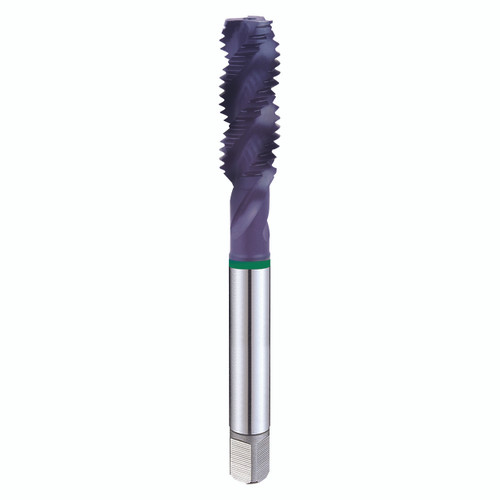

| Product Type | Spiral Flute Bottom Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Number of Flutes:
4
Chamfer:
2P - 3P
Material:
HSS-EX
Finish/Coating:
TICN
Through Coolant:
No
interval quantity:
1
