Product Specifications
| EDP Number | TCD676C |
| Size & Pitch | M18x1.5 |
| Diameter (Decimal Inch) | 0.7087" |
| Diameter (mm) | 18.00mm |
| Overall Length (Decimal Inch) | 4.0300" |
| Length/Diameter | 2.5xD |
| Chamfer Type | Modified Bottoming |
| Overall Length (mm) | 102.36mm |
| Thread Length (Decimal Inch) | 0.5510" |
| Thread Length (mm) | 14.00mm |
| Square Length (Decimal Inch) | 0.6300" |
| Square Length (mm) | 16.00mm |
| Shank Diameter (Decimal Inch) | 0.5420" |
| Shank Diameter (mm) | 13.77mm |
| Square Size (Decimal Inch) | 0.4060" |
| Square Size (mm) | 10.31mm |
| Neck Diameter (Decimal Inch) | 0.5300" |
| Connection (mm) | 13.77 x 10.31mm |
| Connection (Decimal Inch) | 0.542 x 0.406" |
| Useable Length (Decimal Inch) | 2.2050" |
| Neck Diameter (mm) | 13.46mm |
| Drill Size (Decimal Inch) | 0.6550" |
| Drill Size (mm) | 16.64mm |
| Useable Length (mm) | 56.01mm |
| Thread Series | MF |
| Pitch Limit | D6 |
| Chamfer Length | 2P-3P |
| Finish | TICN |
| Blank Standard | 302A |
| Helix Angle (Degree) | 45 Degree |
| Number of Flutes | 4 |
| Tap Type | SPFL |
| Shank Type | Square |
| Coolant Through | No |
| Ring Color | Green |
| Trade Name | Combo Tap INOX |
| Series | TCD-C |
| Material | HSS-EX |

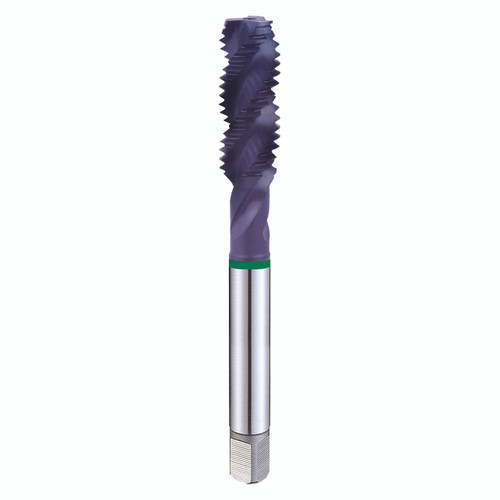

| Product Type | Spiral Flute Bottom Tap |
