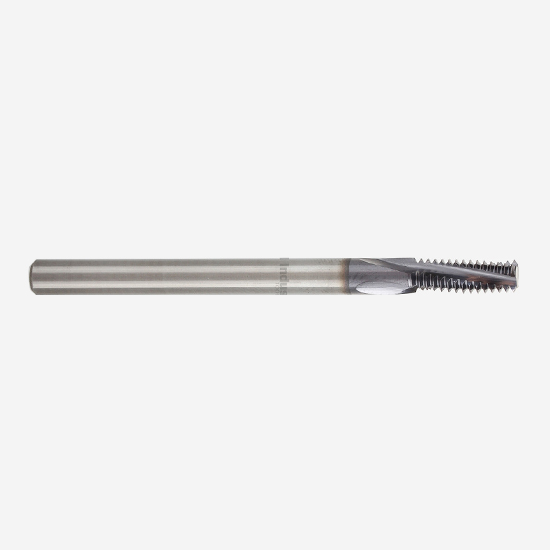

YG1 TE400 | UN 1/4" - 20 Size x 0.500" Thread Length x 3/16" Shank x 2-1/2" OAL x 15 Degree Helix Angle 3 Flute TiAN Coated Carbide TE Helical Flute Thread Mill

$158.19 $112.32
(You save $45.87)
Brand:
YG1
Thread Size (Inch):
1/4"
Thread Size (Decimal Inch):
0.1800"
Thread Size (mm):
4.57mm
Threads Per Inch:
20
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Number of Flutes:
3
Finish/Coating:
TiAN
Material:
Carbide
interval quantity:
1
SKU:
15000307
UPC:
650229429238
Weight:
0.07 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
YG1 TE400 | UN 1/4" - 20 Size x 0.500" Thread Length x 3/16" Shank x 2-1/2" OAL x 15 Degree Helix Angle 3 Flute TiAN Coated Carbide TE Helical Flute Thread Mill

Product Specifications
Manufacturer Part NumberTE400
Thread Size (Inch)1/4"
Threads per Inch (TPI)20
Thread SeriesUN
Thread Size (Decimal Inch)0.180"
Thread Size (mm)4.57mm
Shank Diameter (Inch)3/16"
Shank Diameter (Decimal Inch)0.188"
Shank Diameter (mm)4.76mm
Thread Length (Decimal Inch)0.500"
Thread Length (mm)12.70mm
Overall Length (Inch)2-1/2"
Overall Length (Decimal Inch)2.500"
Overall Length (mm)63.50mm
Shank TypePlain
Helix Angle (Degree)15 Degree
Number of Flutes3
CoatingTiAN
MaterialCarbide
ApplicationP, K, N
SeriesTE
Cutting DirectionRight Hand
Product TypeHelical Flute Thread Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
