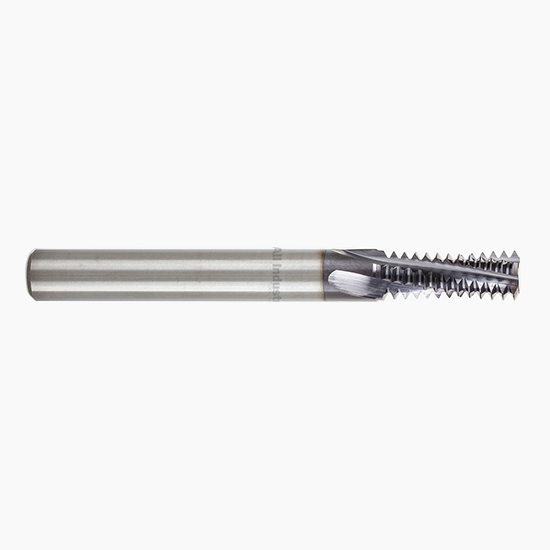

YG1 TE560 | 1/2-13 Helical Flute Solid Carbide Thread Mill 60 Degree TiAlN Coated

$230.05 $165.64
(You save $64.41)
Ships:
From Partner Facility
Brand:
YG1
Threads Per Inch:
13
Material:
Solid Carbide
Shank Diameter (Decimal Inch):
0.3750"
Number of Flutes:
4
Cutter Diameter (Decimal Inch):
0.3500"
Length of Cut (Decimal Inch):
0.8750"
Finish/Coating:
TiAlN
Through Coolant:
No
Ships:
From Partner Facility
SKU:
15000313
UPC:
650229429290
Weight:
0.19 LBS
Shipping:
Free Shipping
YG1 TE560 | 1/2-13 Helical Flute Solid Carbide Thread Mill 60 Degree TiAlN Coated

Features

  • Manufacturer Part # TE560
  • Weight: 0.19 lbs
  • Solid carbide thread mills with 60 Degree helical flute, TiAlN coated for unified internal threads - ANSI B 1.1
  • Plain straight shank and 15 Degree spiral angle
  • Specifications: size: 1/2-13, pitch: 13 TPI, cutter diameter: 0.35", shank diameter: 0.375", length of cut: 0.875", overall length: 3.5", flutes: 4
  • TiAlN coated for improved performance and tool life in harder materials or high temperature applications

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
YG1
Threads Per Inch:
13
Material:
Solid Carbide
Shank Diameter (Decimal Inch):
0.3750"
Number of Flutes:
4
Cutter Diameter (Decimal Inch):
0.3500"
Length of Cut (Decimal Inch):
0.8750"
Finish/Coating:
TiAlN
Through Coolant:
No
Ships:
From Partner Facility
