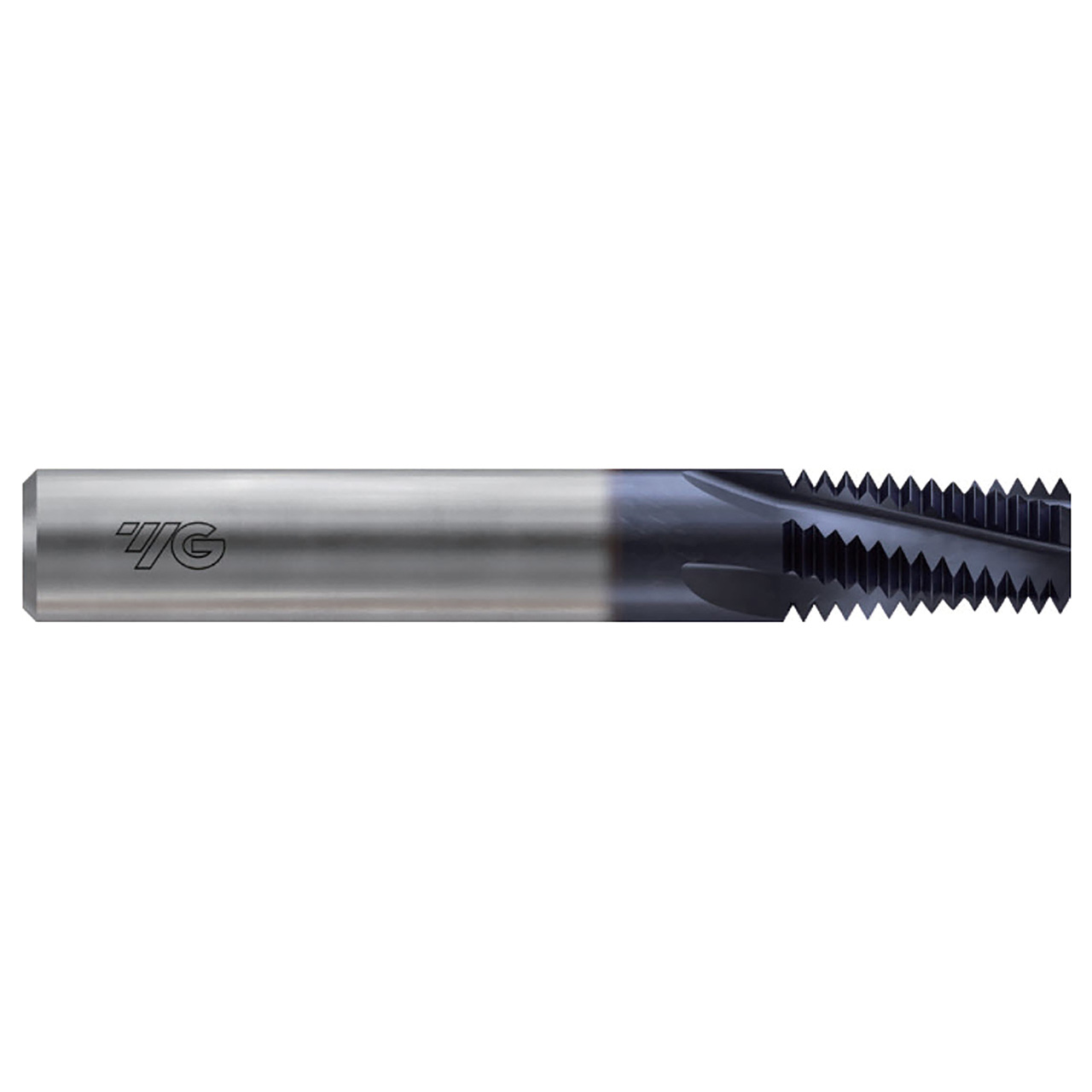

Product Specifications
| Manufacturer Part Number | TF020 |
| Thread Diameter (Inch) | 1/6" & 1/8" |
| Threads Per Inch | 27 TPI |
| Diameter (Inch) | 12/49" |
| Diameter (Decimal Inch) | 0.2450" |
| Diameter (mm) | 6.22mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (mm) | 6.35mm |
| Thread Length (Inch) | 7/16" |
| Thread Length (Decimal Inch) | 0.4370" |
| Thread Length (mm) | 11.10mm |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (mm) | 63.50mm |
| Number of Flutes | 3 |
| Series | TF |
| Thread Series | NPT |
| Shank Style | Plain |
| Helix Angle | 15 Degree |
| Coating | TiAN |
| Material | Carbide |
| Type | Unified Internal Threads - ANSI B 1.20.1 (NPT) |
| Application | P, K, N |
| Cutting Direction | Right |
