Product Specifications

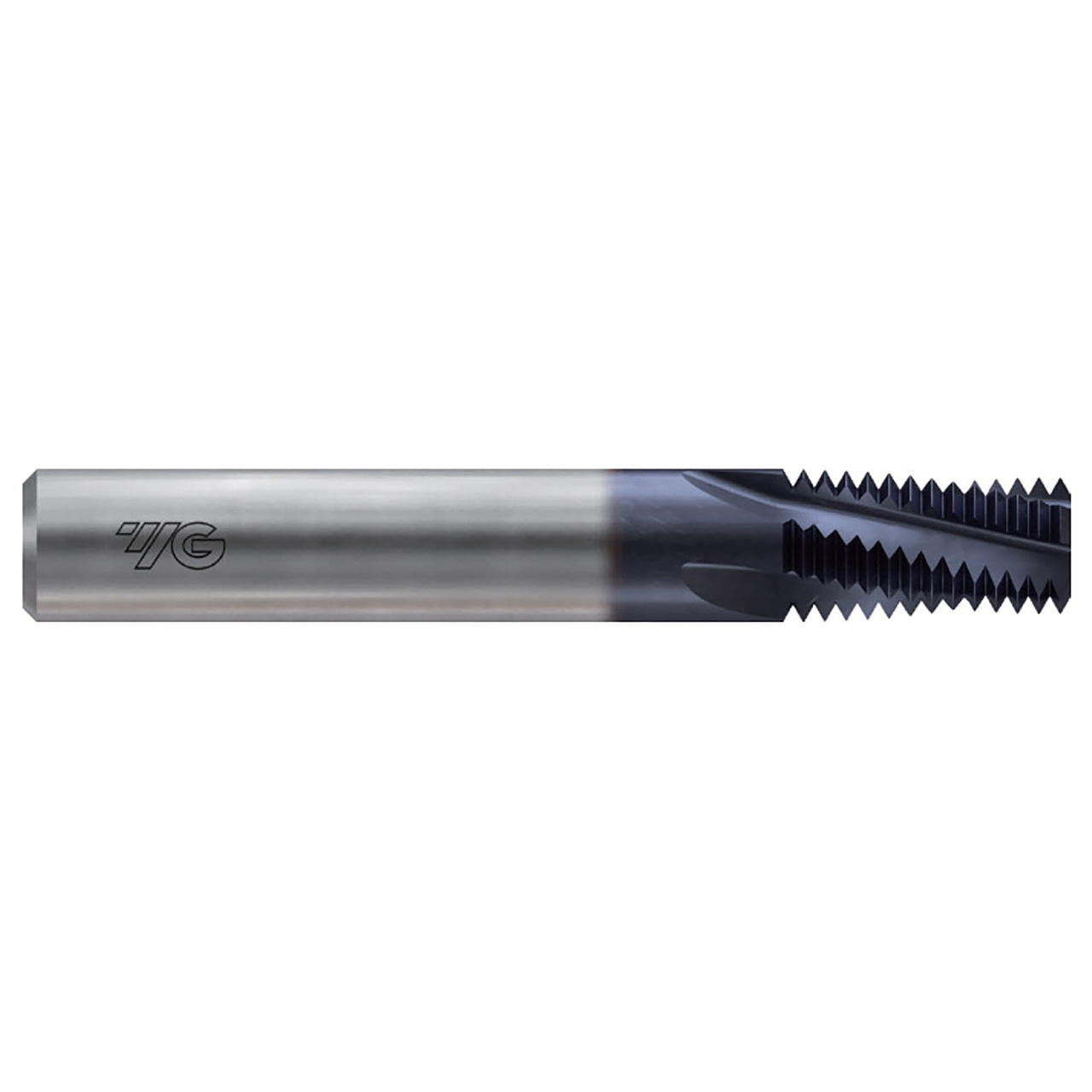

| Manufacturer Part Number | TG780 |
| Thread Diameter (Inch) | 1" - 2" |
| Threads Per Inch | 11.5 TPI |
| Diameter (Inch) | 31/50" |
| Diameter (Decimal Inch) | 0.6200" |
| Diameter (mm) | 15.75mm |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (mm) | 15.88mm |
| Thread Length (Inch) | 1-1/8" |
| Thread Length (Decimal Inch) | 1.1250" |
| Thread Length (mm) | 28.58mm |
| Overall Length (Inch) | 4" |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall Length (mm) | 101.60mm |
| Number of Flutes | 4 |
| Series | TG |
| Thread Series | NPTF |
| Shank Style | Plain |
| Helix Angle | 15 Degree |
| Coating | TiAN |
| Material | Carbide |
| Type | Unified Internal Threads ANSI B1.20.3 (NPTF) |
| Application | P, K, N |
| Cutting Direction | Right |
