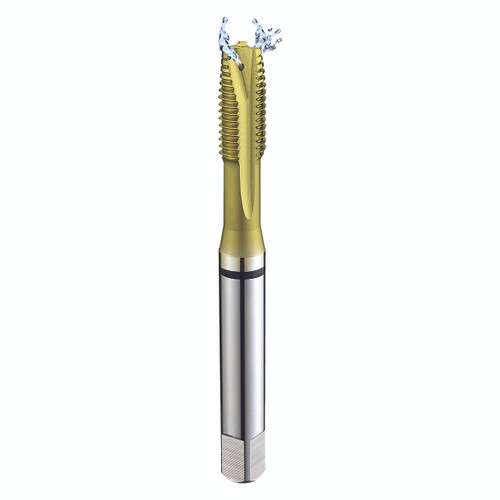

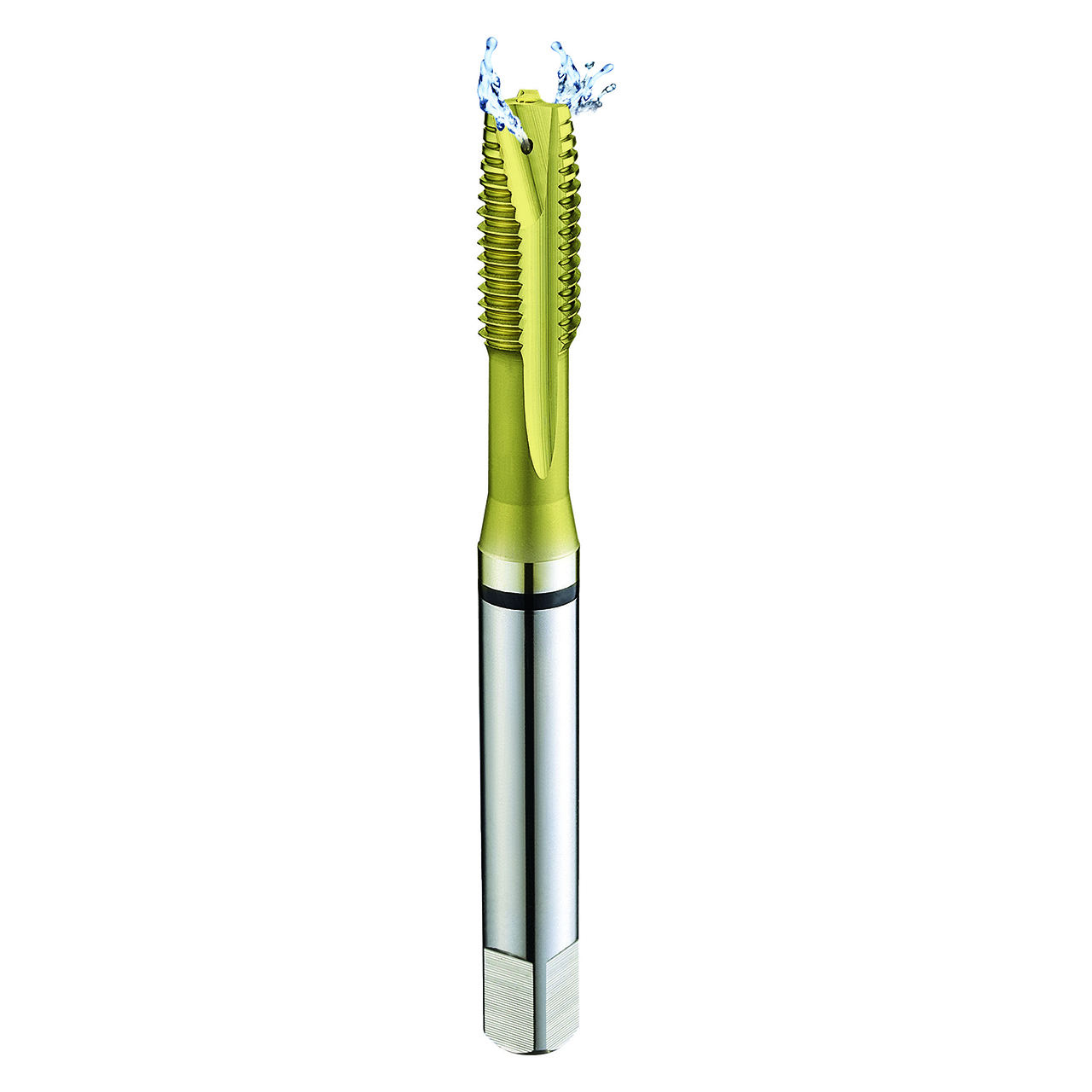

| Manufacturer Part Number | TH657N |
| Size & Pitch | M18x2.5 |
| Diameter (Decimal Inch) | 0.7087" |
| Diameter (mm) | 18.00mm |
| Overall Length (Decimal Inch) | 4.0300" |
| Length/Diameter | 3.0xD |
| Chamfer Type | Plug |
| Overall Length (mm) | 102.36mm |
| Thread Length (Decimal Inch) | 1.0830" |
| Thread Length (mm) | 27.51mm |
| Square Length (Decimal Inch) | 0.6300" |
| Square Length (mm) | 16.00mm |
| Shank Diameter (Decimal Inch) | 0.5420" |
| Shank Diameter (mm) | 13.77mm |
| Square Size (Decimal Inch) | 0.4060" |
| Square Size (mm) | 10.31mm |
| Neck Diameter (Decimal Inch) | 0.5300" |
| Connection (mm) | 13.77 x 10.31mm |
| Connection (Decimal Inch) | 0.542 x 0.406" |
| Useable Length (Decimal Inch) | 1.8110" |
| Neck Diameter (mm) | 13.46mm |
| Drill Size (Decimal Inch) | 0.6192" |
| Drill Size (mm) | 15.73mm |
| Useable Length (mm) | 46.00mm |
| Thread Series | M |
| Pitch Limit | D7 |
| Chamfer Length | 4P-5P |
| Finish | TIN |
| Blank Standard | 302A |
| Helix Angle (Degree) | 0 Degree |
| Number of Flutes | 3 |
| Tap Type | SPPT |
| Shank Type | Square |
| Coolant Through | Yes |
| Ring Color | Black |
| Trade Name | Combo Tap |
| Series | TH-N |
| Material | HSS-EX |
| Product Type | Spiral Point Tap |
