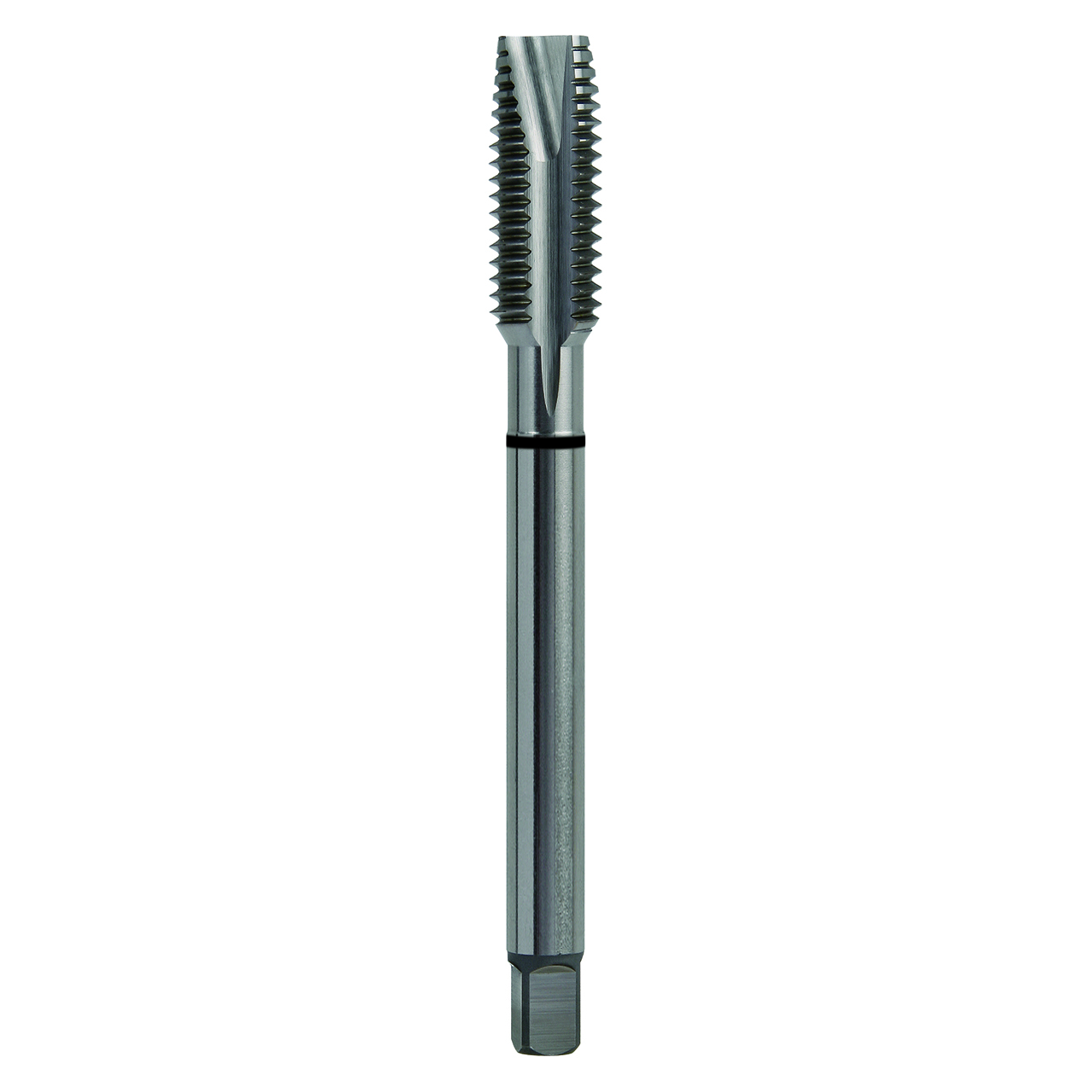

Product Specifications
| EDP Number | TK224S |
| Size & Pitch | M3.5x0.6 |
| Diameter (Decimal Inch) | 0.1378" |
| Diameter (mm) | 3.50mm |
| Overall Length (Decimal Inch) | 2.2050" |
| Length/Diameter | 3.0xD |
| Chamfer Type | Plug |
| Overall Length (mm) | 56.01mm |
| Thread Length (Decimal Inch) | 0.4130" |
| Thread Length (mm) | 10.49mm |
| Square Length (Decimal Inch) | 0.1900" |
| Square Length (mm) | 4.83mm |
| Shank Diameter (Decimal Inch) | 0.1410" |
| Shank Diameter (mm) | 3.58mm |
| Square Size (Decimal Inch) | 0.1100" |
| Square Size (mm) | 2.79mm |
| Neck Diameter (Decimal Inch) | 0.1040" |
| Connection (mm) | 3.58 x 2.79mm |
| Connection (Decimal Inch) | 0.141 x 0.11" |
| Useable Length (Decimal Inch) | 0.6460" |
| Neck Diameter (mm) | 2.64mm |
| Drill Size (Decimal Inch) | 0.1163" |
| Drill Size (mm) | 2.95mm |
| Useable Length (mm) | 16.41mm |
| Thread Series | M |
| Pitch Limit | D4 |
| Chamfer Length | 4P-5P |
| Finish | Oxide |
| Blank Standard | DIN/ANSI |
| Helix Angle (Degree) | 0 Degree |
| Number of Flutes | 3 |
| Tap Type | SPPT |
| Shank Type | Square |
| Coolant Through | No |
| Ring Color | Black |
| Trade Name | Combo Tap |
| Series | TK-S |
| Material | HSS-EX |
| Product Type | Spiral Point Tap |
