| Manufacturer Part Number | TKS67162 |
| Diameter (Decimal Inch) | 0.1120" |
| Diameter (mm) | 2.84mm |
| Overall Length (Decimal Inch) | 1.8800" |
| Overall Length (mm) | 47.75mm |
| Thread Length (Decimal Inch) | 0.2500" |
| Thread Length (mm) | 6.35" |
| Square Length (Decimal Inch) | 0.1900" |
| Square Length (mm) | 4.83mm |
| Shank Diameter (Decimal Inch) | 0.1410" |
| Shank Diameter (mm) | 0.1100" |
| Square Size (Decimal Inch) | 0.1100" |
| Square Size (mm) | 2.79mm |
| Neck Diameter (Decimal Inch) | 0.0770" |
| Neck Diameter (mm) | 1.96mm |
| Drill Size (Decimal Inch) | 0.0893" |
| Drill Size (mm) | 2.27mm |
| Useable (Decimal Inch) | 0.5630" |
| Useable (mm) | 14.30mm |
| Neck Length (Decimal Inch) | 0.5630" |
| Neck Length (mm) | 14.30mm |
| Number of Flutes | 3 |
| Size | #4 |
| Pitch | 40 TPI |
| Thread Series | UNC |
| Pitch Limit | H2 |
| Chamfer Type | Modified Bottom Chamfer Type |
| Chamfer Length | 2P-3P |
| Coating | TICN |
| Material | HSS-PM |
| Blank Standard | 302a |
| Helix Angle | 45 Degree |
| Coolant Through | No |

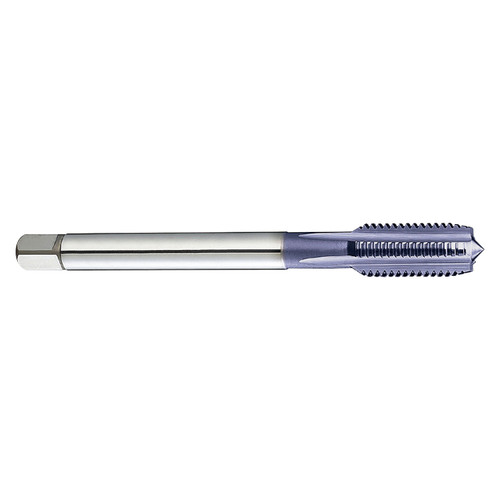

| Product Type | Straight Flute Tap |
