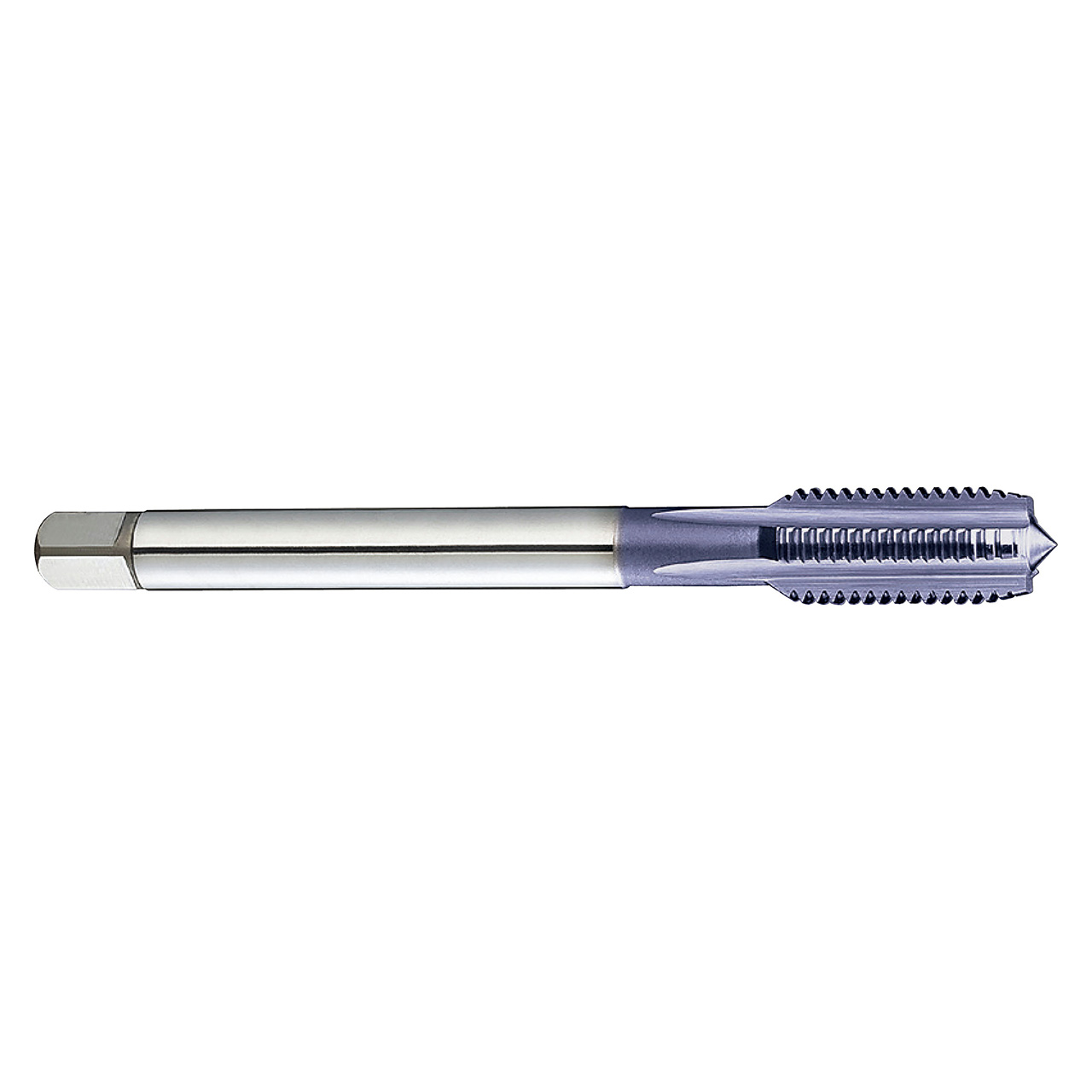

Product Specifications
| Diameter (Decimal Inch) | TKS67563 |
| Diameter (Decimal Inch) | 0.5000" |
| Diameter (mm) | 12.70mm |
| Overall Length (Decimal Inch) | 3.3800" |
| Overall Length (mm) | 85.85mm |
| Thread Length (Decimal Inch) | 0.5000" |
| Thread Length (mm) | 12.70" |
| Square Length (Decimal Inch) | 0.4400" |
| Square Length (mm) | 11.18mm |
| Shank Diameter (Decimal Inch) | 0.3670" |
| Shank Diameter (mm) | 0.2750" |
| Square Size (Decimal Inch) | 0.2750" |
| Square Size (mm) | 6.99mm |
| Neck Diameter (Decimal Inch) | 0.3540" |
| Neck Diameter (mm) | 8.99mm |
| Drill Size (Decimal Inch) | 0.4301" |
| Drill Size (mm) | 10.92mm |
| Useable (Decimal Inch) | 2.0670" |
| Useable (mm) | 52.50mm |
| Neck Length (Decimal Inch) | 1.8500" |
| Neck Length (mm) | 46.99mm |
| Neck Length (mm) | STFL |
| Number of Flutes | 4 |
| Size | 1/2" |
| Pitch | 13 TPI |
| Thread Series | UNC |
| Pitch Limit | H3 |
| Chamfer Type | Modified Bottom Chamfer Type |
| Chamfer Length | 2P-3P |
| Coating | TICN |
| Material | HSS-PM |
| Blank Standard | 302A |
| Helix Angle | 45 Degree |
| Coolant Through | No |
| Product Type | Straight Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Tap Type:
STFL
Number of Flutes:
4
Chamfer:
Modified Bottom
Material:
HSS-PM
Finish/Coating:
TICN
Through Coolant:
No
interval quantity:
1
