| Manufacturer Part Number | TR405R |
| Size | 1/4" |
| Pitch | 20 TPI |
| Diameter (Decimal Inch) | 0.2500" |
| Diameter (mm) | 6.35mm |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (mm) | 63.50mm |
| Thread Length (Decimal Inch) | 0.5910" |
| Thread Length (mm) | 15.01mm |
| Square Length (Decimal Inch) | 0.3100" |
| Square Length (mm) | 7.87mm |
| Shank Diameter (Decimal Inch) | 0.2550" |
| Shank Diameter (mm) | 6.48mm |
| Square Size (Decimal Inch) | 0.1910" |
| Square Size (mm) | 4.85mm |
| Neck Diameter (Decimal Inch) | 0.1800" |
| Neck Diameter (mm) | 4.57mm |
| Drill Size (Decimal Inch) | 0.2045" |
| Drill Size (mm) | 5.20mm |
| Useable Length (Decimal Inch) | 1.0000" |
| Useable Length (mm) | 25.40mm |
| Length/Diameter | 2.0xD |
| Number of Flutes | 4 |
| Pitch Limit | H5 |
| Chamfer Length | 2P-3P |
| Blank Standard | 302A |
| Series | TR-R |
| Thread Series | UNC |
| Coating | TiALN |
| Material | HSS-PM |
| Coolant Through | Yes |
| Trade Name | YG Tap Cast |
| Shank Type | Square |
| Tap Type | Straight Flute |
| Chamfer Type | Modified Bottoming |

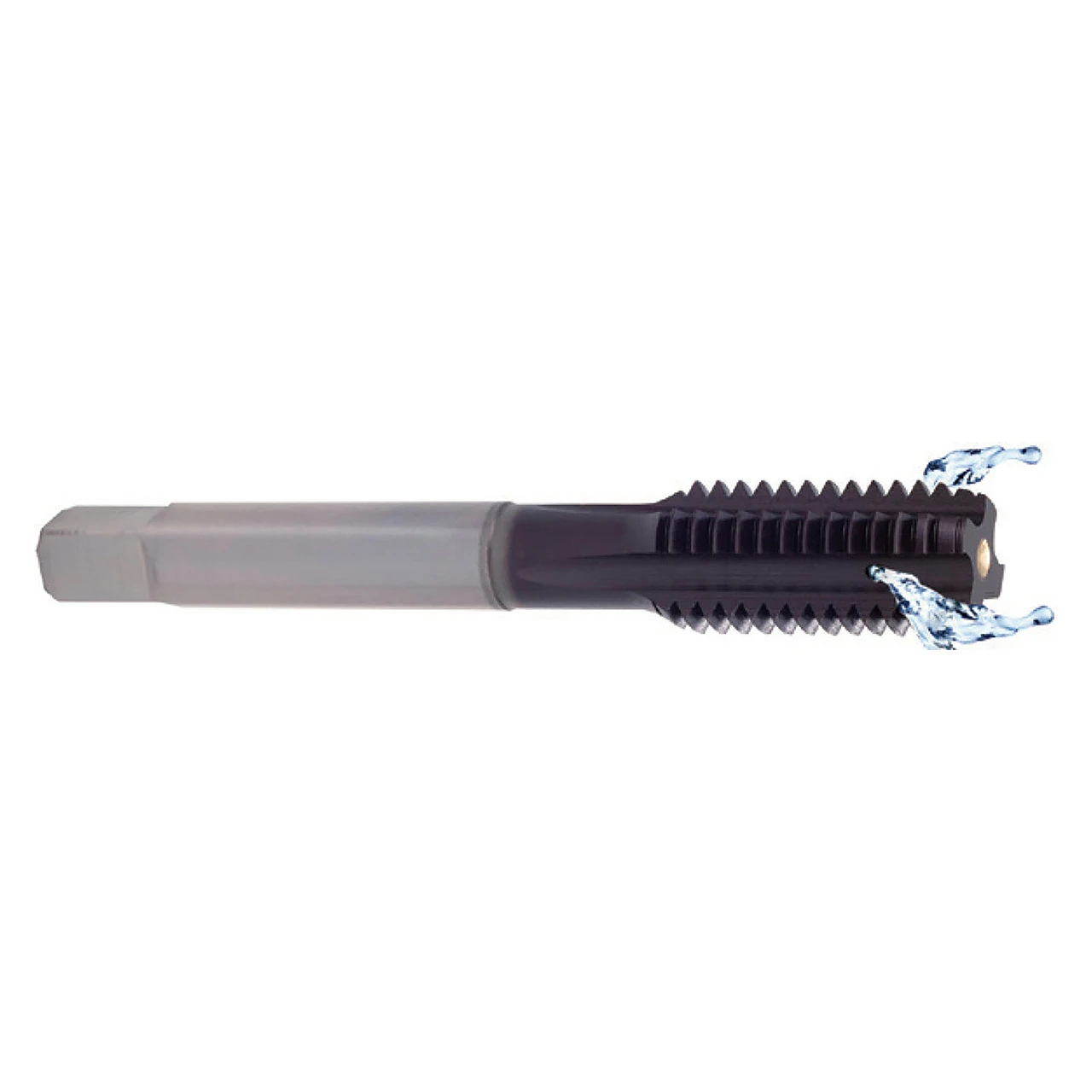

| Product Type | Straight Flute Modified Bottoming Tap |
