| Manufacturer Part Number | TRR11326GS |
| Size | #10 |
| Thread Limit | H6 |
| Threads per Inch (TPI) | 24 |
| Diameter (Inch) | 15/79" |
| Diameter (Decimal Inch) | 0.190" |
| Diameter (mm) | 4.83mm |
| Thread Series | UNC |
| Overall Length (Inch) | 2-3/4" |
| Overall Length (Decimal Inch) | 2.750" |
| Overall Length (mm) | 69.85mm |
| Thread Length (Inch) | 1/2" |
| Thread Length (Decimal Inch) | 0.500" |
| Thread Length (mm) | 12.70mm |
| Square Length (Inch) | 1/4" |
| Square Length (Decimal Inch) | 0.250" |
| Square Length (mm) | 6.35mm |
| Shank Diameter (Inch) | 13/67" |
| Shank Diameter (Decimal Inch) | 0.194" |
| Shank Diameter (mm) | 4.93mm |
| Square Size (Inch) | 12/79" |
| Square Size (Decimal Inch) | 0.152" |
| Square Size (mm) | 3.86mm |
| Neck Length (Decimal Inch) | 0.984" |
| Shank Type | Square |
| Drill Size (Decimal Inch) | 0.173" |
| Drill Size (mm) | 4.40mm |
| Connection Size (Decimal Inch) | 0.194" x 0.152" |
| Connection Size (mm) | 4.27 x 3.86mm |
| Useable Length (Decimal Inch) | 0.984" |
| Useable Length (mm) | 24.99mm |
| Number of Flutes | 5 |
| Series | TRR11 |
| Blank Standard | DIN/ANSI |
| Chamfer Type | Bottoming |
| Chamfer Length | 1P-2P |
| Coating | X |
| Material | HSS-PM |

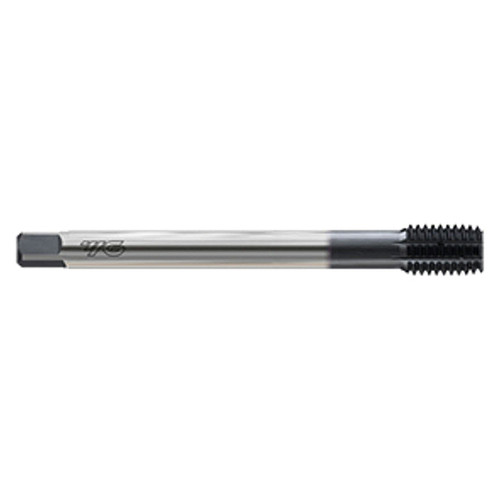

| Product Type | Thread Forming Tap |
