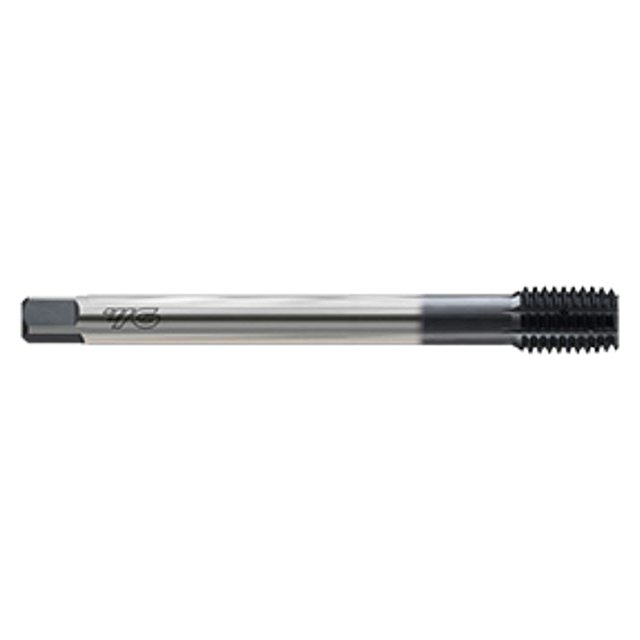

| Manufacturer Part Number | TRR12135GS |
| Size | M2.00 |
| Pitch (mm) | 0.40mm |
| Thread Limit | D5 |
| Diameter (Inch) | 3/38" |
| Diameter (Decimal Inch) | 0.079" |
| Diameter (mm) | 2.00mm |
| Thread Series | M |
| Overall Length (Inch) | 1-67/87" |
| Overall Length (Decimal Inch) | 1.770" |
| Overall Length (mm) | 44.96mm |
| Thread Length (Inch) | 23/73" |
| Thread Length (Decimal Inch) | 0.315" |
| Thread Length (mm) | 8.00mm |
| Square Length (Inch) | 15/79" |
| Square Length (Decimal Inch) | 0.190" |
| Square Length (mm) | 4.83mm |
| Shank Diameter (Inch) | 11/78" |
| Shank Diameter (Decimal Inch) | 0.141" |
| Shank Diameter (mm) | 3.58mm |
| Square Size (Inch) | 10/91" |
| Square Size (Decimal Inch) | 0.110" |
| Square Size (mm) | 2.79mm |
| Neck Length (Decimal Inch) | 0.362" |
| Shank Type | Square |
| Drill Size (Decimal Inch) | 0.071" |
| Drill Size (mm) | 1.80mm |
| Connection Size (Decimal Inch) | 0.141" x 0.110" |
| Connection Size (mm) | 3.58 x 2.79mm |
| Useable Length (Decimal Inch) | 0.362" |
| Useable Length (mm) | 9.190mm |
| Number of Flutes | 4 |
| Series | TRR12 |
| Blank Standard | DIN/ANSI |
| Chamfer Type | Modified Bottoming |
| Chamfer Length | 2P-3P |
| Coating | X |
| Material | HSS-PM |
| Product Type | Thread Forming Tap |
