| Manufacturer Part Number | TRR12246GS |
| Size | M4.00 |
| Pitch (mm) | 0.70mm |
| Thread Limit | D6 |
| Diameter (Inch) | 3/19" |
| Diameter (Decimal Inch) | 0.157" |
| Diameter (mm) | 4.00mm |
| Thread Series | M |
| Overall Length (Inch) | 2-12/25" |
| Overall Length (Decimal Inch) | 2.480" |
| Overall Length (mm) | 62.99mm |
| Thread Length (Inch) | 1/3" |
| Thread Length (Decimal Inch) | 0.331" |
| Thread Length (mm) | 8.41mm |
| Square Length (Inch) | 1/4" |
| Square Length (Decimal Inch) | 0.250" |
| Square Length (mm) | 6.35mm |
| Shank Diameter (Inch) | 1/6" |
| Shank Diameter (Decimal Inch) | 0.168" |
| Shank Diameter (mm) | 4.27mm |
| Square Size (Inch) | 11/84" |
| Square Size (Decimal Inch) | 0.131" |
| Square Size (mm) | 3.33mm |
| Neck Length (Decimal Inch) | 0.827" |
| Shank Type | Square |
| Drill Size (Decimal Inch) | 0.146" |
| Drill Size (mm) | 3.70mm |
| Connection Size (Decimal Inch) | 0.168" x 0.131" |
| Connection Size (mm) | 4.27 x 3.33mm |
| Useable Length (Decimal Inch) | 0.827" |
| Useable Length (mm) | 21.01mm |
| Number of Flutes | 4 |
| Series | TRR12 |
| Blank Standard | DIN/ANSI |
| Chamfer Type | Modified Bottoming |
| Chamfer Length | 2P-3P |
| Coating | X |
| Material | HSS-PM |

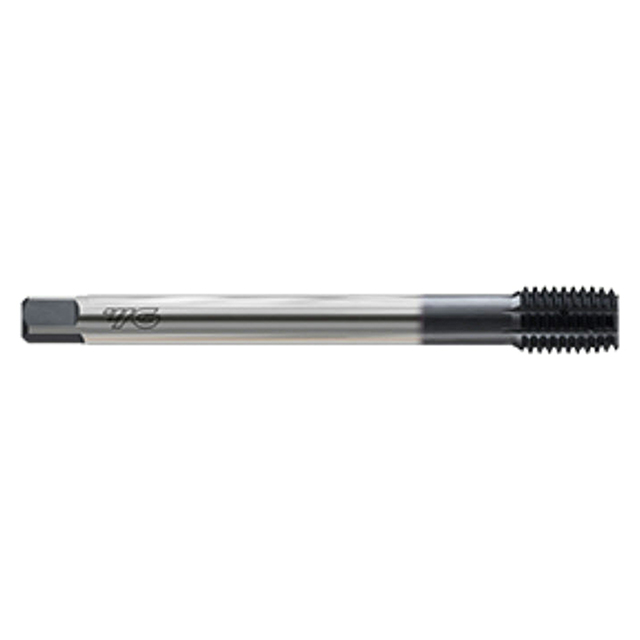

| Product Type | Thread Forming Tap |
