Product Specifications
| Manufacturer Part Number | TRR1670BGSP |
| Size | M20.00 |
| Pitch (mm) | 2.50mm |
| Thread Limit | D12 |
| Diameter (Inch) | 37/47" |
| Diameter (Decimal Inch) | 0.787" |
| Diameter (mm) | 20.00mm |
| Thread Series | M |
| Overall Length (Inch) | 5-26/51" |
| Overall Length (Decimal Inch) | 5.510" |
| Overall Length (mm) | 139.95mm |
| Thread Length (Inch) | 48/61" |
| Thread Length (Decimal Inch) | 0.787" |
| Thread Length (mm) | 19.99mm |
| Square Length (Inch) | 20/29" |
| Square Length (Decimal Inch) | 0.690" |
| Square Length (mm) | 17.53mm |
| Shank Diameter (Inch) | 15/23" |
| Shank Diameter (Decimal Inch) | 0.652" |
| Shank Diameter (mm) | 16.56mm |
| Square Size (Inch) | 22/45" |
| Square Size (Decimal Inch) | 0.489" |
| Square Size (mm) | 12.42mm |
| Neck Length (Decimal Inch) | 2.433" |
| Shank Type | Square |
| Drill Size (Decimal Inch) | 0.744" |
| Drill Size (mm) | 18.90mm |
| Connection Size (Decimal Inch) | 0.652" x 0.489" |
| Connection Size (mm) | 16.56 x 12.42mm |
| Useable Length (Decimal Inch) | 2.433" |
| Useable Length (mm) | 61.80mm |
| Number of Flutes | 8 |
| Series | TRR16 |
| Coolant Through | Yes |
| Blank Standard | DIN/ANSI |
| Chamfer Type | Modified Bottoming |
| Chamfer Length | 2P-3P |
| Coating | X |
| Material | HSS-PM |
| Product Type | Thread Forming Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

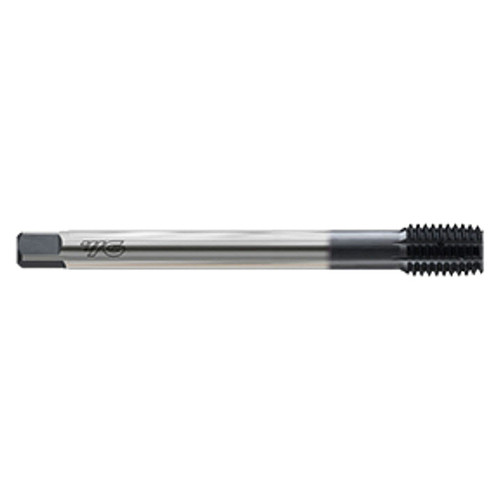

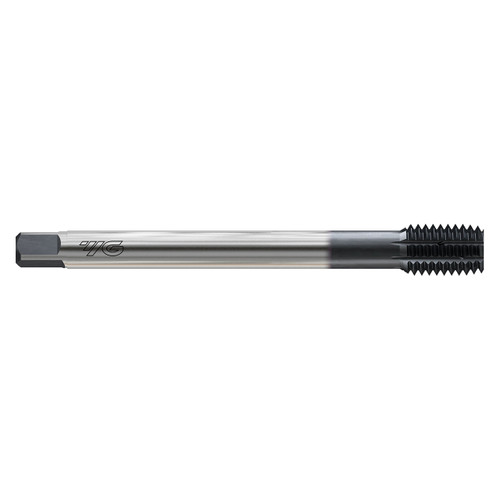

Related Products
