Product Specifications

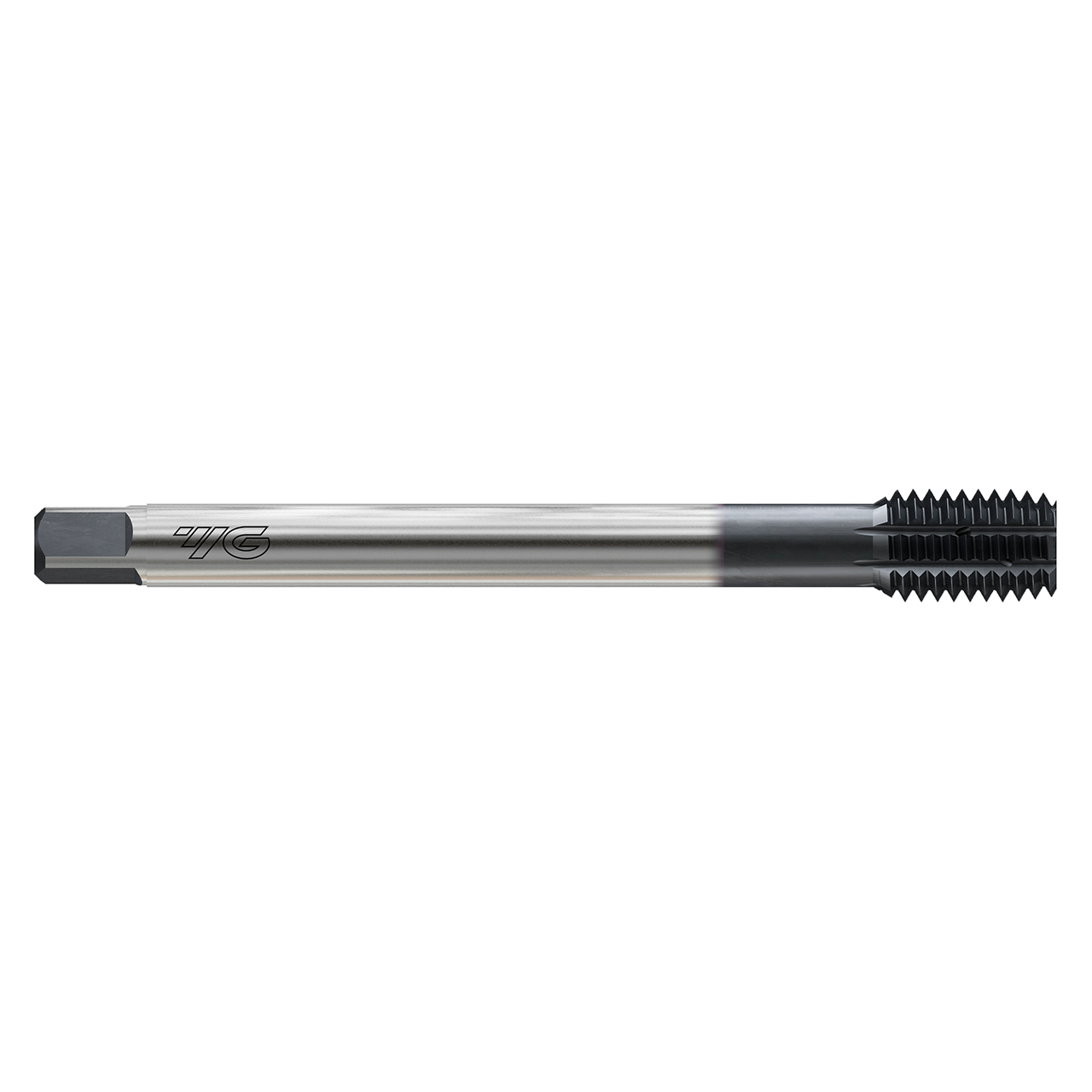

| Manufacturer Part Number | TRR1674BGSP |
| Size | M22.00 |
| Pitch (mm) | 2.50mm |
| Thread Limit | D12 |
| Diameter (Inch) | 13/15" |
| Diameter (Decimal Inch) | 0.866" |
| Diameter (mm) | 22.00mm |
| Thread Series | M |
| Overall Length (Inch) | 5-26/51" |
| Overall Length (Decimal Inch) | 5.510" |
| Overall Length (mm) | 139.95mm |
| Thread Length (Inch) | 48/61" |
| Thread Length (Decimal Inch) | 0.787" |
| Thread Length (mm) | 19.99mm |
| Square Length (Inch) | 3/4" |
| Square Length (Decimal Inch) | 0.750" |
| Square Length (mm) | 19.05mm |
| Shank Diameter (Inch) | 23/33" |
| Shank Diameter (Decimal Inch) | 0.697" |
| Shank Diameter (mm) | 17.70mm |
| Square Size (Inch) | 34/65" |
| Square Size (Decimal Inch) | 0.523" |
| Square Size (mm) | 13.28mm |
| Neck Length (Decimal Inch) | 2.654" |
| Shank Type | Square |
| Drill Size (Decimal Inch) | 0.823" |
| Drill Size (mm) | 20.90mm |
| Connection Size (Decimal Inch) | 0.697" x 0.523" |
| Connection Size (mm) | 17.70 x 13.28mm |
| Useable Length (Decimal Inch) | 2.654" |
| Useable Length (mm) | 67.41mm |
| Number of Flutes | 8 |
| Series | TRR16 |
| Coolant Through | Yes |
| Blank Standard | DIN/ANSI |
| Chamfer Type | Modified Bottoming |
| Chamfer Length | 2P-3P |
| Coating | X |
| Material | HSS-PM |
| Product Type | Thread Forming Tap |
