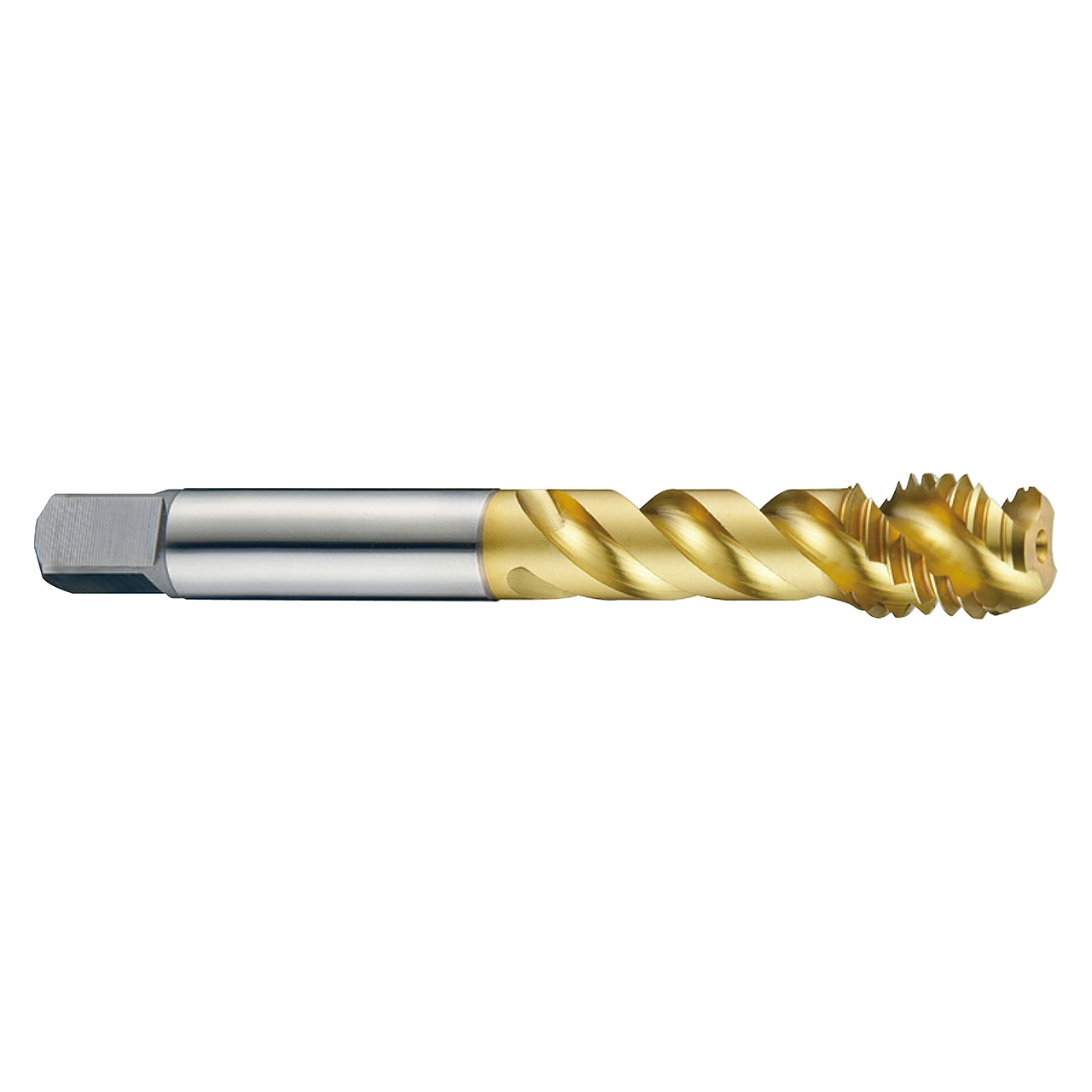

YG1 TTS61284 | 0.1969" Diameter x 0.1940" Shank x 2.3800" OAL 3 Flute TIN Coated HSS-PM Spiral Flute Tap

$18.27
Brand:
YG1
Thread Size (Inch):
0.1969"
Thread Size (mm):
5.00mm
Number of Flutes:
3
Chamfer:
Modified Bottoming
Material:
HSS-PM
Finish/Coating:
TIN
Through Coolant:
No
Threads per Inch (TPI):
0.8 TPI
Overall Length (Inch):
2.3800"
Overall Length (mm):
60.45mm
SKU:
15035980
Weight:
0.02 LBS
Shipping:
Calculated at Checkout

Product Specifications
Diameter (Decimal Inch)TTS61284
Diameter (Decimal Inch)0.1969"
Diameter (mm)5.00mm
Overall Length (Decimal Inch)2.3800"
Overall Length (mm)60.45mm
Thread Length (Decimal Inch)0.3150"
Thread Length (mm)8.00"
Square Length (Decimal Inch)0.2500"
Square Length (mm)6.35mm
Shank Diameter (Decimal Inch)0.1940"
Shank Diameter (mm)0.1520"
Square Size (Decimal Inch)0.1520"
Square Size (mm)3.86mm
Neck Diameter (Decimal Inch)0.1520"
Neck Diameter (mm)3.86mm
Drill Size (Decimal Inch)0.1682"
Drill Size (mm)4.27mm
Useable (Decimal Inch)0.9330"
Useable (mm)23.70mm
Neck Length (Decimal Inch)0.9330"
Neck Length (mm)23.70mm
Neck Length (mm)SPFL
Number of Flutes3
SizeM5
Pitch0.8 TPI
Thread SeriesM
Pitch LimitD4
Chamfer TypeModified Bottoming
Chamfer Length2P-3P
CoatingTIN
MaterialHSS-PM
Blank Standard302A
Helix Angle45 Degree
Coolant ThroughNo
Product TypeSpiral Flute Tap
