Product Specifications
| Diameter (Decimal Inch) | TTS61547 |
| Diameter (Decimal Inch) | 0.5512" |
| Diameter (mm) | 14.00mm |
| Overall Length (Decimal Inch) | 3.5900" |
| Overall Length (mm) | 91.19mm |
| Thread Length (Decimal Inch) | 0.7870" |
| Thread Length (mm) | 19.99" |
| Square Length (Decimal Inch) | 0.5000" |
| Square Length (mm) | 12.70mm |
| Shank Diameter (Decimal Inch) | 0.4290" |
| Shank Diameter (mm) | 0.3220" |
| Square Size (Decimal Inch) | 0.3220" |
| Square Size (mm) | 8.18mm |
| Neck Diameter (Decimal Inch) | 0.4170" |
| Neck Diameter (mm) | 10.59mm |
| Drill Size (Decimal Inch) | 0.4796" |
| Drill Size (mm) | 12.18mm |
| Useable (Decimal Inch) | 2.0670" |
| Useable (mm) | 52.50mm |
| Neck Length (Decimal Inch) | 2.0670" |
| Neck Length (mm) | 52.50mm |
| Neck Length (mm) | SPFL |
| Number of Flutes | 3 |
| Size | M14 |
| Pitch | 2 TPI |
| Thread Series | M |
| Pitch Limit | D7 |
| Chamfer Type | Modified Bottoming |
| Chamfer Length | 2P-3P |
| Coating | TIN |
| Material | HSS-PM |
| Blank Standard | 302A |
| Helix Angle | 45 Degree |
| Coolant Through | No |

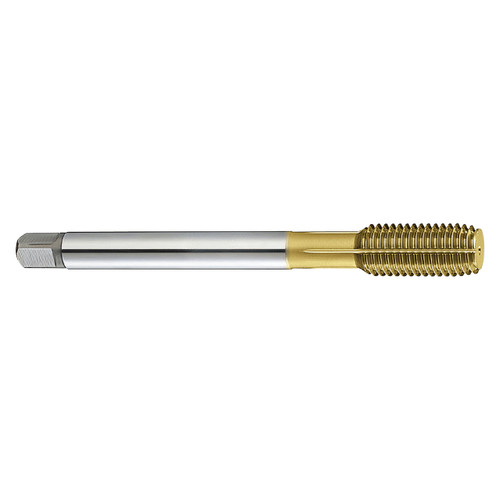

| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Thread Size (Inch):
0.5512"
Thread Size (mm):
14.00mm
Number of Flutes:
3
Chamfer:
Modified Bottoming
Material:
HSS-PM
Finish/Coating:
TIN
Through Coolant:
No
Threads per Inch (TPI):
2 TPI
Overall Length (Inch):
3.5900"
Overall Length (mm):
91.19mm
