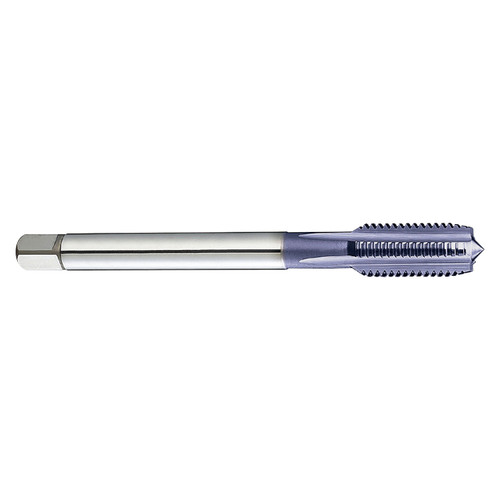

YG1 TTS65181 | 0.1120" Diameter x 0.1410" Shank x 1.8800" OAL 3 Flute TIN Coated HSS-PM Spiral Flute Tap

$19.32
Brand:
YG1
Thread Size (Inch):
0.1120"
Thread Size (mm):
2.84mm
Number of Flutes:
3
Chamfer:
Modified Bottoming
Material:
HSS-PM
Finish/Coating:
TIN
Through Coolant:
No
Threads per Inch (TPI):
48 TPI
Overall Length (Inch):
1.8800"
Overall Length (mm):
47.75mm
SKU:
15036040
Weight:
0.01 LBS
Shipping:
Calculated at Checkout

Product Specifications
Diameter (Decimal Inch)TTS65181
Diameter (Decimal Inch)0.1120"
Diameter (mm)2.84mm
Overall Length (Decimal Inch)1.8800"
Overall Length (mm)47.75mm
Thread Length (Decimal Inch)0.2090"
Thread Length (mm)5.31"
Square Length (Decimal Inch)0.1900"
Square Length (mm)4.83mm
Shank Diameter (Decimal Inch)0.1410"
Shank Diameter (mm)0.1100"
Square Size (Decimal Inch)0.1100"
Square Size (mm)2.79mm
Neck Diameter (Decimal Inch)0.0770"
Neck Diameter (mm)1.96mm
Drill Size (Decimal Inch)0.0931"
Drill Size (mm)2.36mm
Useable (Decimal Inch)0.5630"
Useable (mm)14.30mm
Neck Length (Decimal Inch)0.5630"
Neck Length (mm)14.30mm
Neck Length (mm)SPFL
Number of Flutes3
Size#4
Pitch48 TPI
Thread SeriesUNF
Pitch LimitH1
Chamfer TypeModified Bottoming
Chamfer Length2P-3P
CoatingTIN
MaterialHSS-PM
Blank Standard302A
Helix Angle45 Degree
Coolant ThroughNo
Product TypeSpiral Flute Tap
