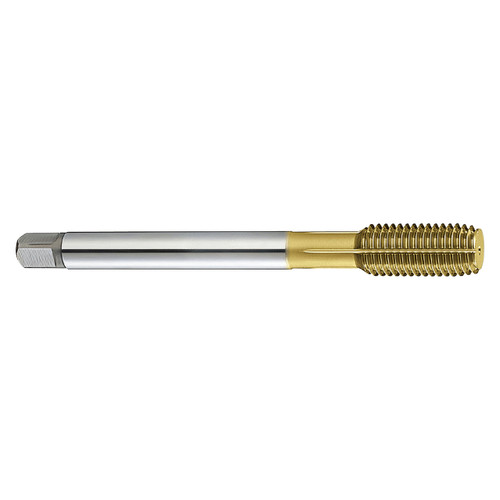

YG1 TTS66464 | 0.3125" Diameter x 0.3180" Shank x 2.7200" OAL 3 Flute TIN Coated HSS-PM Spiral Point Tap

$17.86
Brand:
YG1
Thread Size (Inch):
0.3125"
Thread Size (mm):
7.94mm
Number of Flutes:
3
Chamfer:
Plug
Finish/Coating:
TIN
Material:
HSS-PM
Through Coolant:
No
SKU:
15036113
Weight:
0.06 LBS
Shipping:
Calculated at Checkout

Product Specifications
Diameter (Decimal Inch)TTS66464
Diameter (Decimal Inch)0.3125"
Diameter (mm)7.94mm
Overall Length (Decimal Inch)2.7200"
Overall Length (mm)69.09mm
Thread Length (Decimal Inch)0.4170"
Thread Length (mm)10.59"
Square Length (Decimal Inch)0.3800"
Square Length (mm)9.65mm
Shank Diameter (Decimal Inch)0.3180"
Shank Diameter (mm)0.2380"
Square Size (Decimal Inch)0.2380"
Square Size (mm)6.05mm
Neck Diameter (Decimal Inch)0.2540"
Neck Diameter (mm)6.45mm
Drill Size (Decimal Inch)0.2746"
Drill Size (mm)6.98mm
Useable (Decimal Inch)1.1260"
Useable (mm)28.60mm
Neck Length (Decimal Inch)1.1260"
Neck Length (mm)28.60mm
Neck Length (mm)SPPT
Number of Flutes3
Size5/16"
Pitch24 TPI
Thread SeriesUNF
Pitch LimitH4
Chamfer TypePlug
Chamfer Length4P-5P
CoatingTIN
MaterialHSS-PM
Blank Standard302A
Helix Angle45 Degree
Coolant ThroughNo
Product TypeSpiral Point Tap
