Product Specifications
| Diameter (Decimal Inch) | TTS68548 |
| Diameter (Decimal Inch) | 0.4375" |
| Diameter (mm) | 11.11mm |
| Overall Length (Decimal Inch) | 3.1600" |
| Overall Length (mm) | 80.26mm |
| Thread Length (Decimal Inch) | 0.5000" |
| Thread Length (mm) | 12.70" |
| Square Length (Decimal Inch) | 0.4100" |
| Square Length (mm) | 10.41mm |
| Shank Diameter (Decimal Inch) | 0.3230" |
| Shank Diameter (mm) | 0.2420" |
| Square Size (Decimal Inch) | 0.2420" |
| Square Size (mm) | 6.15mm |
| Neck Diameter (Decimal Inch) | 0.3110" |
| Neck Diameter (mm) | 7.90mm |
| Drill Size (Decimal Inch) | 0.3920" |
| Drill Size (mm) | 9.96mm |
| Useable (Decimal Inch) | 1.8500" |
| Useable (mm) | 46.99mm |
| Neck Length (Decimal Inch) | 1.8500" |
| Neck Length (mm) | 46.99mm |
| Neck Length (mm) | FORMING |
| Number of Flutes | 6 |
| Size | 7/16" |
| Pitch | 20 TPI |
| Thread Series | UNF |
| Pitch Limit | H8 |
| Chamfer Type | Modified Bottom |
| Chamfer Length | 2P-3P |
| Coating | TIN |
| Material | HSS-PM |
| Blank Standard | 302A |
| Helix Angle | 45 Degree |
| Coolant Through | No |

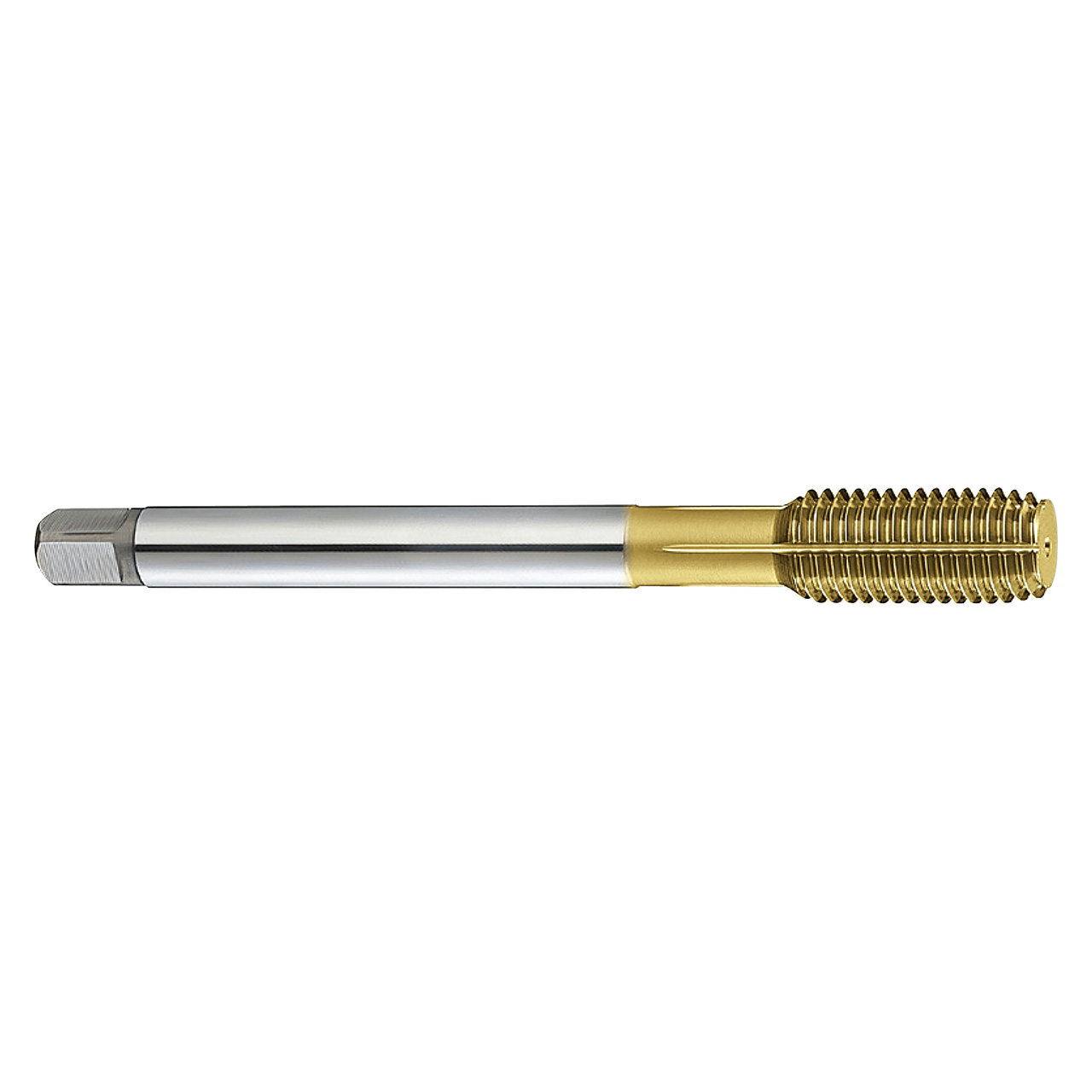

| Product Type | Thread Forming Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Thread Size (mm):
11.11mm
Pitch (Inch):
20 TPI
Number of Flutes:
6
Chamfer:
Modified Bottom
Finish/Coating:
TIN
Material:
HSS-PM
interval quantity:
1
