Product Specifications
| Diameter (Decimal Inch) | TTS68588 |
| Diameter (Decimal Inch) | 0.5000" |
| Diameter (mm) | 12.70mm |
| Overall Length (Decimal Inch) | 3.3800" |
| Overall Length (mm) | 85.85mm |
| Thread Length (Decimal Inch) | 0.5000" |
| Thread Length (mm) | 12.70" |
| Square Length (Decimal Inch) | 0.4400" |
| Square Length (mm) | 11.18mm |
| Shank Diameter (Decimal Inch) | 0.3670" |
| Shank Diameter (mm) | 0.2750" |
| Square Size (Decimal Inch) | 0.2750" |
| Square Size (mm) | 6.99mm |
| Neck Diameter (Decimal Inch) | 0.3540" |
| Neck Diameter (mm) | 8.99mm |
| Drill Size (Decimal Inch) | 0.4545" |
| Drill Size (mm) | 11.55mm |
| Useable (Decimal Inch) | 2.0670" |
| Useable (mm) | 52.50mm |
| Neck Length (Decimal Inch) | 2.0670" |
| Neck Length (mm) | 52.50mm |
| Neck Length (mm) | FORMING |
| Number of Flutes | 6 |
| Size | 1/2" |
| Pitch | 20 TPI |
| Thread Series | UNF |
| Pitch Limit | H8 |
| Chamfer Type | Modified Bottom |
| Chamfer Length | 2P-3P |
| Coating | TIN |
| Material | HSS-PM |
| Blank Standard | 302A |
| Helix Angle | 45 Degree |
| Coolant Through | No |

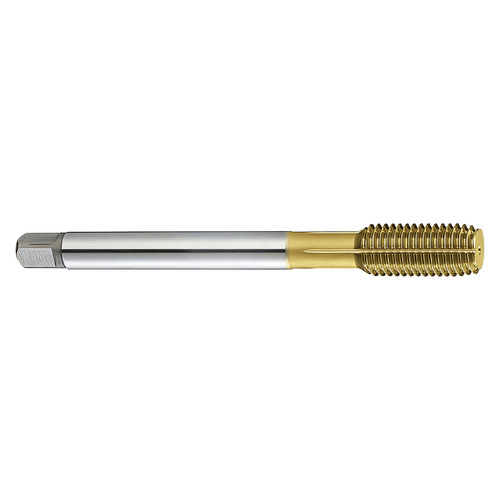

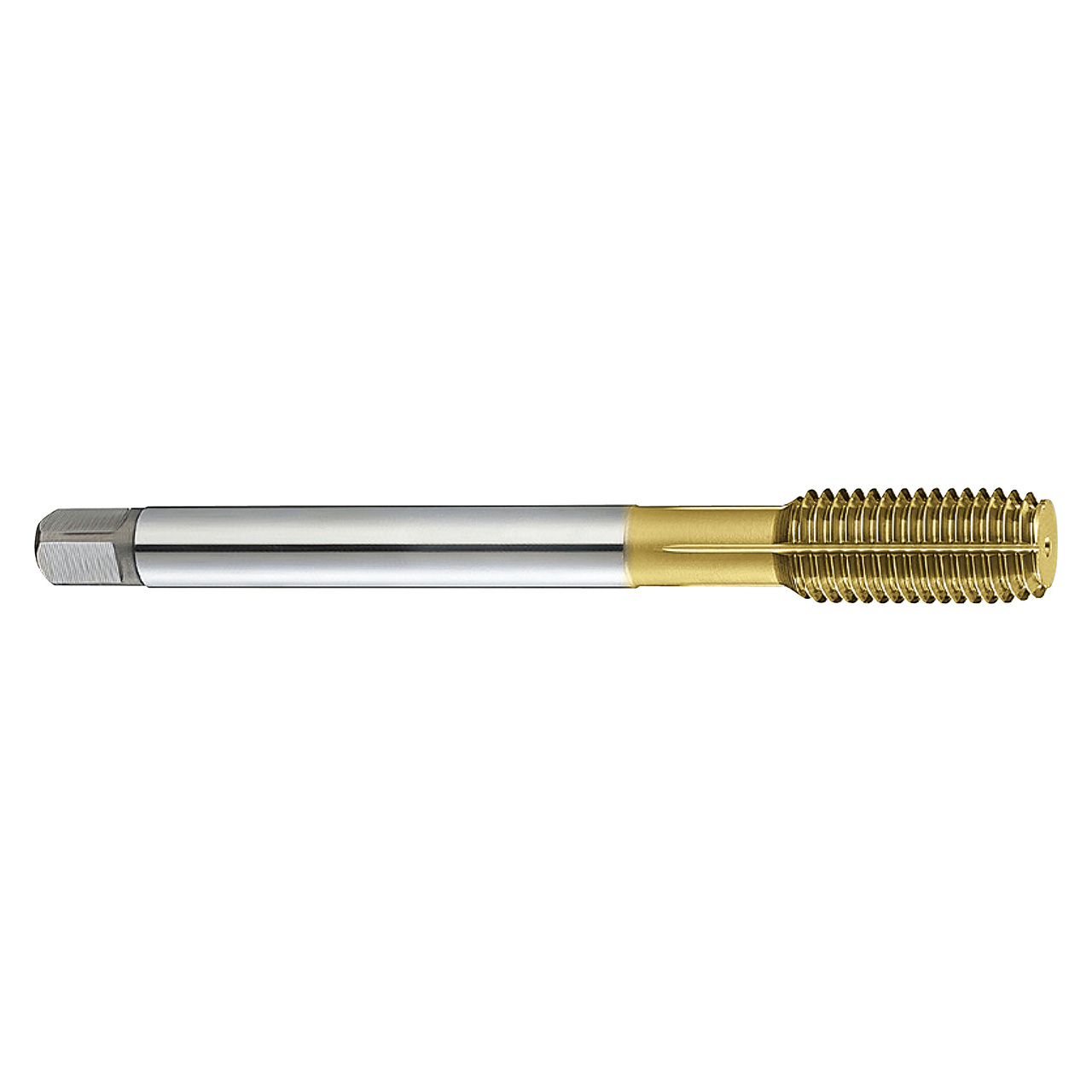

| Product Type | Thread Forming Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Thread Size (Inch):
0.5000"
Thread Size (mm):
12.70mm
Pitch (Inch):
20 TPI
Number of Flutes:
6
Chamfer:
Modified Bottom
Finish/Coating:
TIN
Material:
HSS-PM
