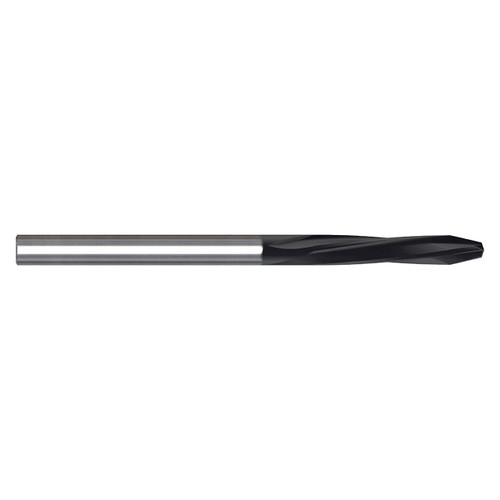

Drill ream process in one shot suitable for hand-held tools Low pressure when feeding with the tool. H6 shank tolerance for high precision tool holders. YG-1 special CVD coating for extended tool life and better abrasion resistance.
Features:
Product Specifications
| Manufacturer Part Number | UDM5P1AC0188 |
| Drill Diameter (Inch) | 3/16" |
| Drill Diameter (Decimal Inch) | 0.1875" |
| Drill Diameter (mm) | 4.76mm |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (mm) | 4.76mm |
| Flute Length (Inch) | 1-1/2" |
| Flute Length (Decimal Inch) | 1.5000" |
| Flute Length (mm) | 38.10mm |
| Overall Length (Inch) | 4" |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall Length (mm) | 101.60mm |
| Number of Flutes | 4 |
| Series | UDM5P1AC |
| Point Angle | 118 Degree |
| Shank Type | Plain |
| Application | CFRP/GFRP |
| Machine | Hand Held |
| Operation | Drilling |
