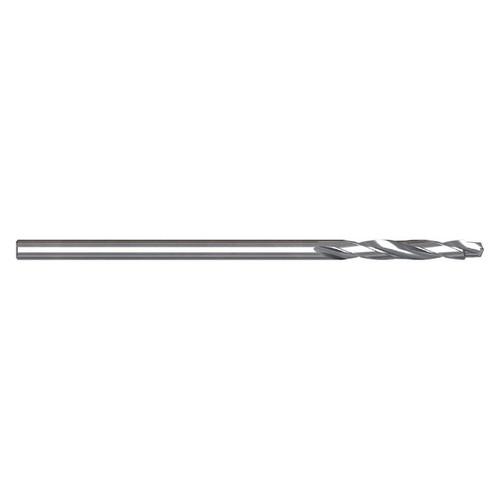

YG1 UDM5P2AB0800 | 0.3150" Diameter x 0.3150" Shank x 5.9055" OAL 4 Flute Diamond Coated Micron Grain Carbide Drill Reamer

$345.67 $248.88
(You save $96.79)
Brand:
YG1
Reamer Diameter (Inch):
23/73"
Reamer Diameter (Decimal Inch):
0.3150"
Reamer Diameter (mm):
8.00mm
Flute Length (Inch):
1-31/32"
Flute Length (Decimal Inch):
1.9685"
Flute Length (mm):
50.00mm
Shank Type:
Plain
Material:
Micron Grain Carbide
interval quantity:
1
SKU:
10216636
UPC:
Weight:
0.02 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Drill ream process in one shot suitable for hand-held tools Low pressure when feeding with the tool. H6 shank tolerance for high precision tool holders. YG-1 special CVD coating for extended tool life and better abrasion resistance.

Features:


Product Specifications
Manufacturer Part NumberUDM5P2AB0800
Drill Diameter (Inch)23/73"
Drill Diameter (Decimal Inch)0.3150"
Drill Diameter (mm)8.00mm
Shank Diameter (Inch)23/73"
Shank Diameter (Decimal Inch)0.3150"
Shank Diameter (mm)8.00mm
Flute Length (Inch)1-31/32"
Flute Length (Decimal Inch)1.9685"
Flute Length (mm)50.00mm
Overall Length (Inch)5-48/53"
Overall Length (Decimal Inch)5.9055"
Overall Length (mm)150.00mm
Number of Flutes4
SeriesUDM5P2AB
Point Angle118 Degree
Shank TypePlain
ApplicationCFRP/GFRP
MachineHand Held
OperationDrilling

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
YG1
Reamer Diameter (Inch):
23/73"
Reamer Diameter (Decimal Inch):
0.3150"
Reamer Diameter (mm):
8.00mm
Flute Length (Inch):
1-31/32"
Flute Length (Decimal Inch):
1.9685"
Flute Length (mm):
50.00mm
Shank Type:
Plain
Material:
Micron Grain Carbide
interval quantity:
1
