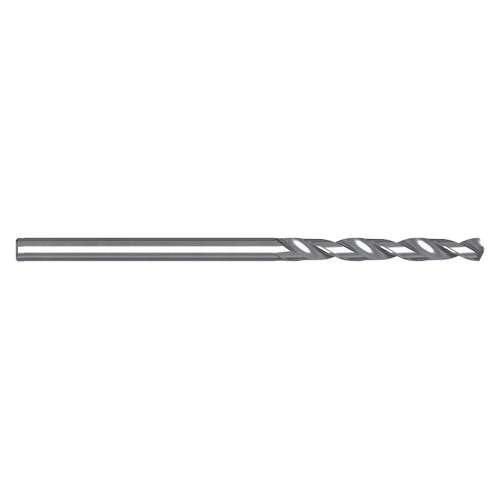

Special geometry for dry or MQL drilling of CFRP/AL stacks YG-1 special CVD coating.
Features:
| Manufacturer Part Number | UDR5A1AB0250 |
| Drill Diameter (Inch) | 1/4" |
| Drill Diameter (Decimal Inch) | 0.2500" |
| Drill Diameter (mm) | 6.35mm |
| Shank Diameter (Inch) | 23/73" |
| Shank Diameter (Decimal Inch) | 0.3150" |
| Shank Diameter (mm) | 8.00mm |
| Flute Length (Inch) | 2-2/23" |
| Flute Length (Decimal Inch) | 2.0866" |
| Flute Length (mm) | 53.00mm |
| Overall Length (Inch) | 3-7/12" |
| Overall Length (Decimal Inch) | 3.5827" |
| Overall Length (mm) | 91.00mm |
| Number of Flutes | 2 |
| Series | UDR5A1AB |
| Point Angle | 125 Degree |
| Shank Type | Plain |
| Application | CFRP/AL/CFRP |
| Machine | CNC Ganty, Robot End-Effectors |
| Operation | Drilling |
