Excellent choice of carbide with minimum micro-grain size made to handle all heat release from the hard metal YG-1 special CVD coating.
Features:
Product Specifications

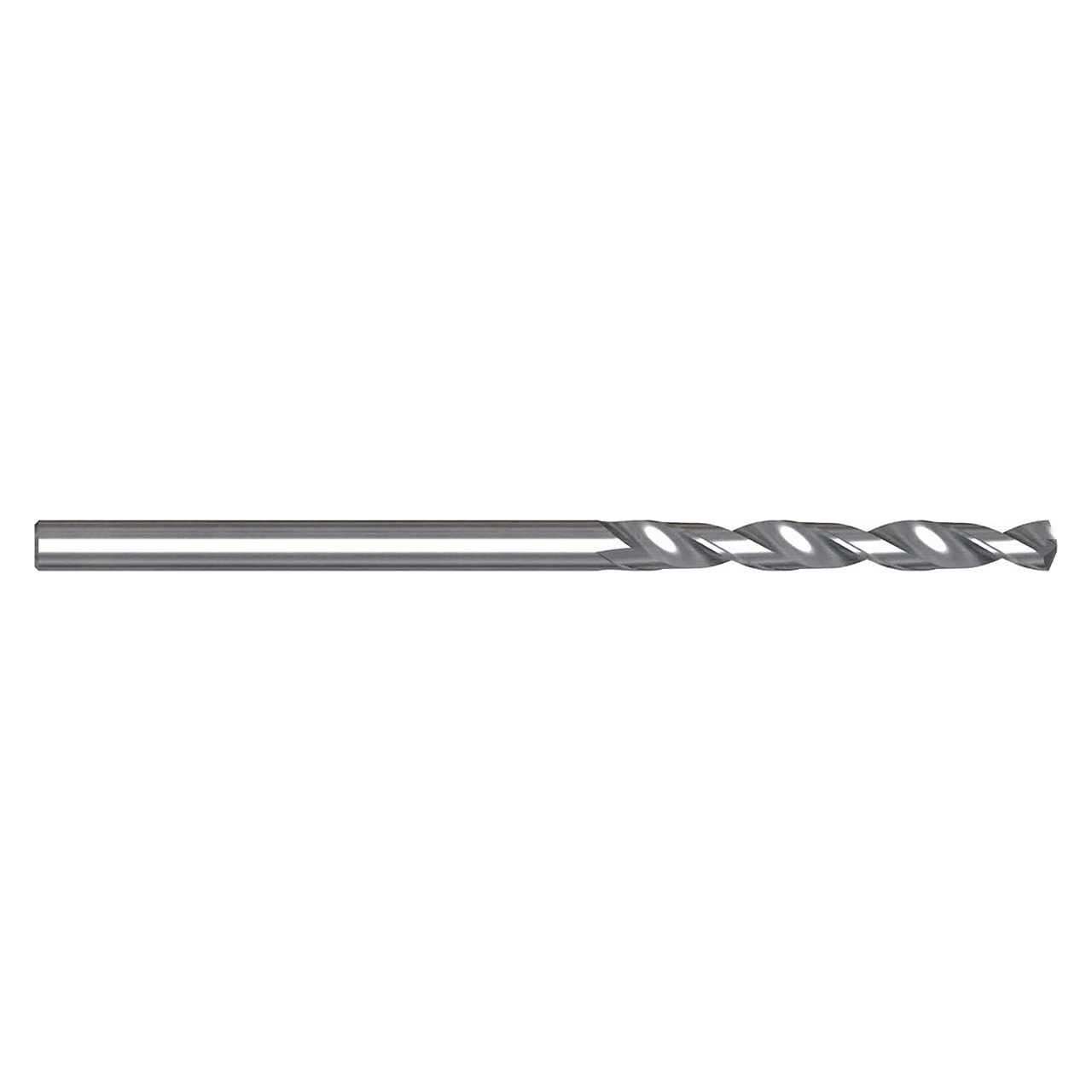

| Manufacturer Part Number | UDR5A1AC0159 |
| Drill Diameter (Inch) | 7/44" |
| Drill Diameter (Decimal Inch) | 0.1590" |
| Drill Diameter (mm) | 4.04mm |
| Drill Diameter (Wire) | #21 |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (mm) | 6.00mm |
| Flute Length (Inch) | 1-5/12" |
| Flute Length (Decimal Inch) | 1.4173" |
| Flute Length (mm) | 36.00mm |
| Overall Length (Inch) | 2-21/23" |
| Overall Length (Decimal Inch) | 2.9134" |
| Overall Length (mm) | 74.00mm |
| Number of Flutes | 2 |
| Series | UDR5A1AC |
| Point Angle | 135 Degree |
| Shank Type | Plain |
| Application | CFRP/Titanium stacks/GFRP |
| Machine | CNC Ganty, Robot End-Effectors |
| Operation | Drilling |
