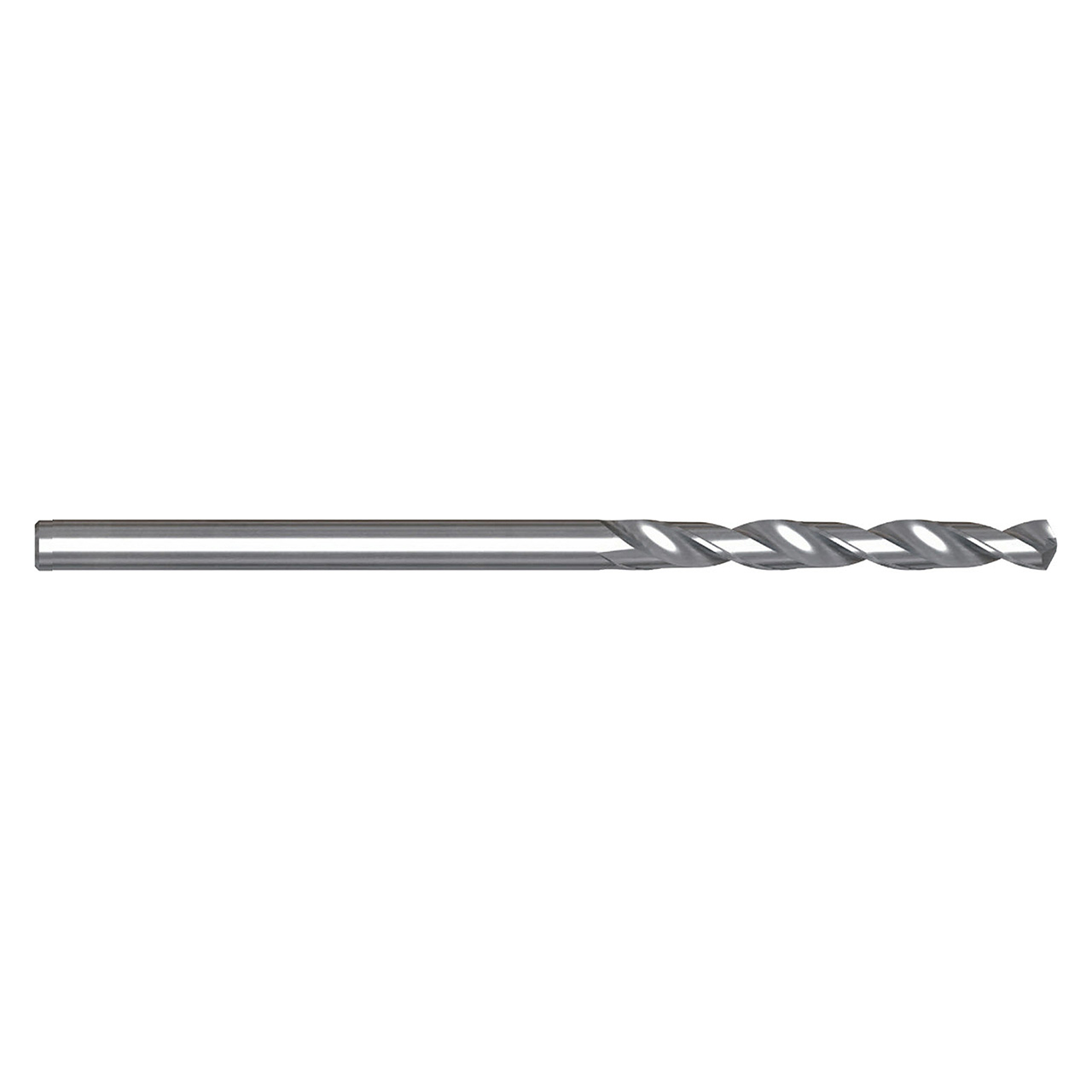

Special geometry for dry or MQL drilling of CFRP/AL stacks YG-1 special CVD coating.
Features:
| Manufacturer Part Number | UDR5A2AB0300 |
| Drill Diameter (Inch) | 2/17" |
| Drill Diameter (Decimal Inch) | 0.1181" |
| Drill Diameter (mm) | 3.00mm |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (mm) | 6.00mm |
| Flute Length (Inch) | 1-4/39" |
| Flute Length (Decimal Inch) | 1.1024" |
| Flute Length (mm) | 28.00mm |
| Overall Length (Inch) | 2-3/5" |
| Overall Length (Decimal Inch) | 2.5984" |
| Overall Length (mm) | 66.00mm |
| Number of Flutes | 2 |
| Series | UDR5A2AB |
| Point Angle | 125 Degree |
| Shank Type | Plain |
| Application | CFRP/AL/CFRP |
| Machine | CNC Ganty, Robot End-Effectors |
| Operation | Drilling |
