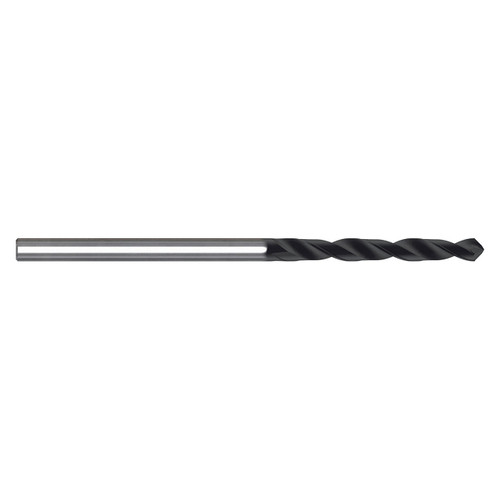

Special geometry for dry or MQL drilling of CFRP/AL stacks YG-1 special CVD coating.
Features:
Product Specifications
| Manufacturer Part Number | UDR5A2AB0800 |
| Drill Diameter (Inch) | 23/73" |
| Drill Diameter (Decimal Inch) | 0.3150" |
| Drill Diameter (mm) | 8.00mm |
| Shank Diameter (Inch) | 23/73" |
| Shank Diameter (Decimal Inch) | 0.3150" |
| Shank Diameter (mm) | 8.00mm |
| Flute Length (Inch) | 2-2/23" |
| Flute Length (Decimal Inch) | 2.0866" |
| Flute Length (mm) | 53.00mm |
| Overall Length (Inch) | 3-7/12" |
| Overall Length (Decimal Inch) | 3.5827" |
| Overall Length (mm) | 91.00mm |
| Number of Flutes | 2 |
| Series | UDR5A2AB |
| Point Angle | 125 Degree |
| Shank Type | Plain |
| Application | CFRP/AL/CFRP |
| Machine | CNC Ganty, Robot End-Effectors |
| Operation | Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Drill Bit Size (Inch):
23/73"
Drill Bit Size (Decimal Inch):
0.3150"
Drill Bit Size (mm):
8.00mm
Drill Point Angle:
125 Degree
Overall Length (Inch):
3-7/12"
Overall Length (Decimal Inch):
3.5827"
Overall Length (mm):
91.00mm
Material:
Micron Grain Carbide
Shank Type:
Plain
