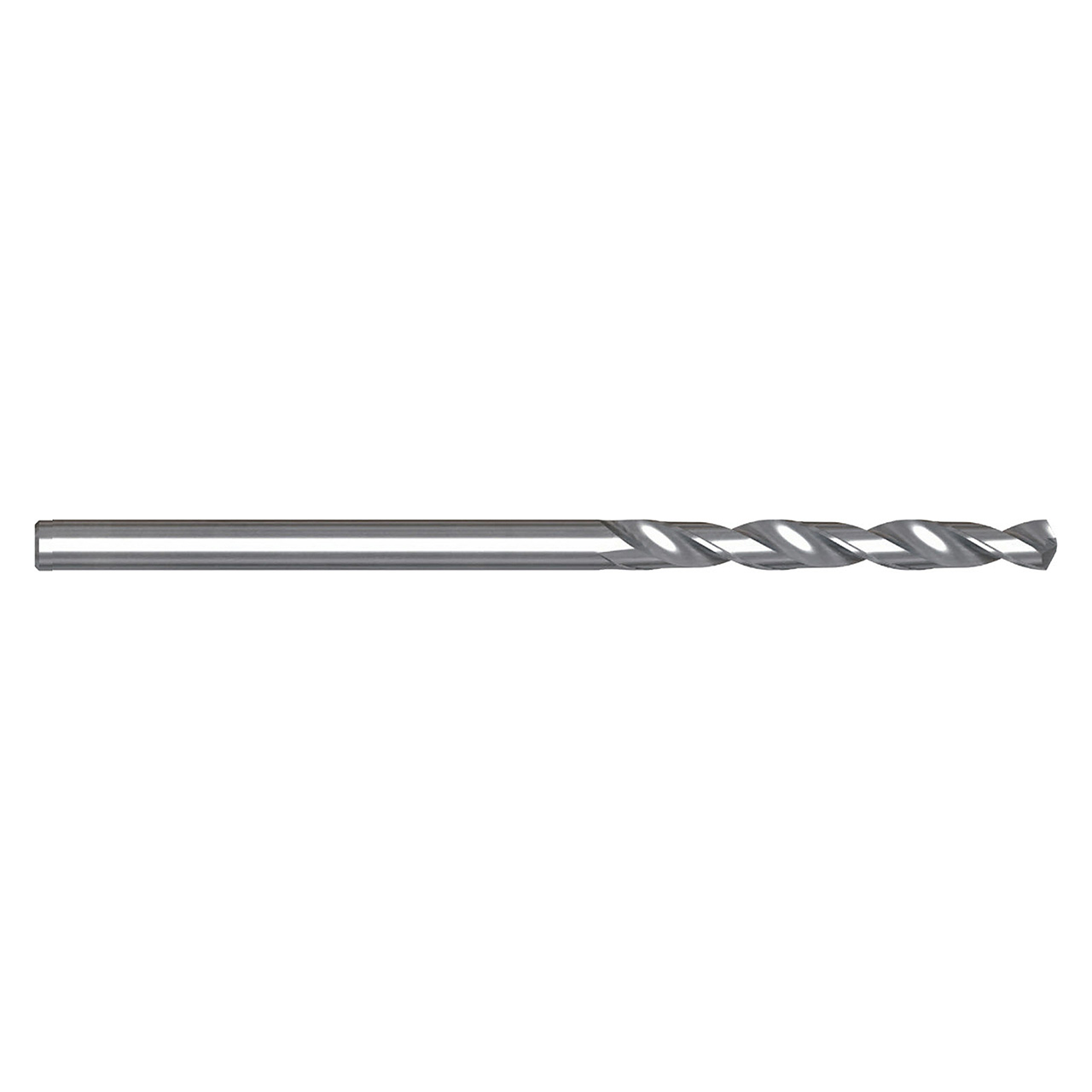

Special geometry for dry or MQL drilling of CFRP/AL stacks YG-1 special CVD coating.
Features:
Product Specifications
| Manufacturer Part Number | UDR5A2AB1000 |
| Drill Diameter (Inch) | 37/94" |
| Drill Diameter (Decimal Inch) | 0.3937" |
| Drill Diameter (mm) | 10.00mm |
| Shank Diameter (Inch) | 37/94" |
| Shank Diameter (Decimal Inch) | 0.3937" |
| Shank Diameter (mm) | 10.00mm |
| Flute Length (Inch) | 2-2/5" |
| Flute Length (Decimal Inch) | 2.4016" |
| Flute Length (mm) | 61.00mm |
| Overall Length (Inch) | 4-1/64" |
| Overall Length (Decimal Inch) | 4.0157" |
| Overall Length (mm) | 102.00mm |
| Number of Flutes | 2 |
| Series | UDR5A2AB |
| Point Angle | 125 Degree |
| Shank Type | Plain |
| Application | CFRP/AL/CFRP |
| Machine | CNC Ganty, Robot End-Effectors |
| Operation | Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Drill Bit Size (Inch):
37/94"
Drill Bit Size (Decimal Inch):
0.3937"
Drill Bit Size (mm):
10.00mm
Drill Point Angle:
125 Degree
Material:
Micron Grain Carbide
Shank Type:
Plain
interval quantity:
1
