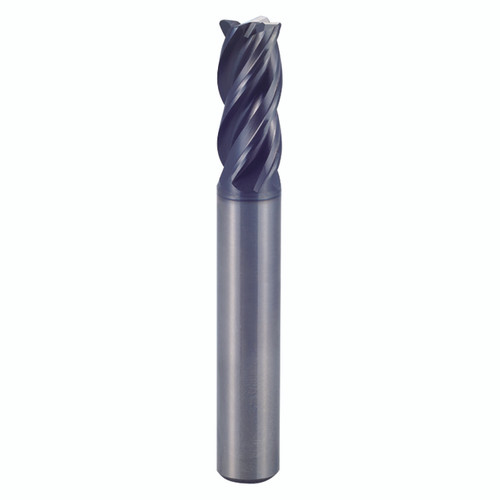

YG1 UGMF70919 | 0.4375" Diameter x 0.4375" Shank x 1.0000" LOC x 2.7500" OAL x 0.0100" Radius 4 Flute Y-Coated Carbide Corner Radius End Mill

$51.53
SKU:
25053937
Weight:
0.20 LBS
Shipping:
Calculated at Checkout

Product Specifications
Manufacturer Part NumberUGMF70919
Diameter (Inch)7/16"
Diameter (Decimal Inch)0.4375"
Diameter (mm)11.11mm
Shank Diameter (Inch)7/16"
Shank Diameter (Decimal Inch)0.4375"
Shank Diameter (mm)11.11mm
Length of Cut (Inch)1"
Length of Cut (Decimal Inch)1.0000"
Length of Cut (mm)25.40mm
Overall Length (Inch)2-3/4"
Overall Length (Decimal Inch)2.7500"
Overall Length (mm)69.85mm
Corner Radius (Inch)1/100"
Corner Radius (Decimal Inch)0.0100"
Corner Radius (mm)0.25mm
Number of Flutes4
Helix AngleVariable
SeriesUGMF70
Shank StylePlain
CoatingY-Coated
MaterialCarbide
Cut TypeCenter
Cutting DirectionRight
Length TypeStandard Length
ApplicationP, M, K, S
